Sunmaster System 9
Sunmaster System 9

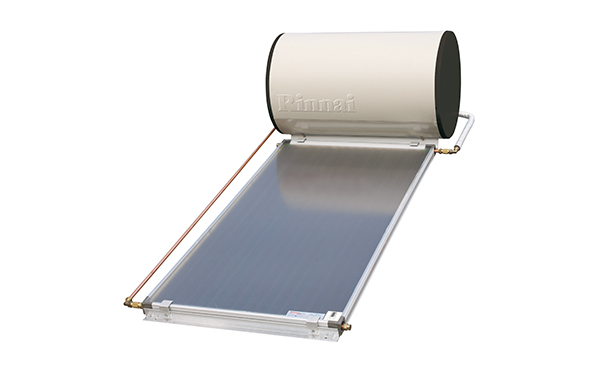

The Sunmaster close coupled system’s storage tank and solar collector panels are linked together and installed on the roof. Using thermo-syphoning (i.e. hot water rises) to circulate water through the collectors and into the storage tank, meaning there are no moving parts and no need for a pump.
Locate Your Nearest Store
- 200 or 330 litre capacity storage
- Available with electric boost or continuous flow gas boost
- Enduro collectors use aluminium fin solar absorber to maximise efficiency
- Available with a frost protection kit
- Sophisticated Thermal Arrestor valve controlling the tank temperature
- A sacrificial anode is provided in the tank for added protection
- Warranty is 5 years on the tanks and 7 years on the collectors
| Storage Capacity | Booster | No Of Enduro Collectors | Frost protection kit available | No of Bedrooms | |
| System 9 | 200L | 2.4 kW | 1 | √ | 1 to 3 |
| System 10 | 330L | 3.6 kW | 2 | √ | 3 or more |
| System11 | 200L | S20 | 1 | √ | 1 to 3 |
| System 12 | 330L | S26 | 2 | √ | 3 or more |
Enduro collectors MUST be used in cyclone regions (wind region C according to AS/NZS1170.2:2011) in conjunction with our cyclone frame.
Contact your local Rinnai Solar Specialist for more information.
