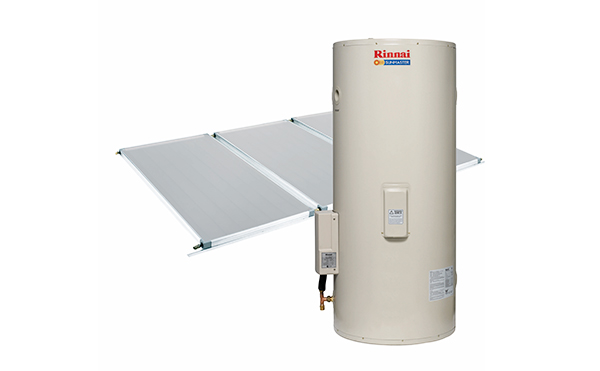

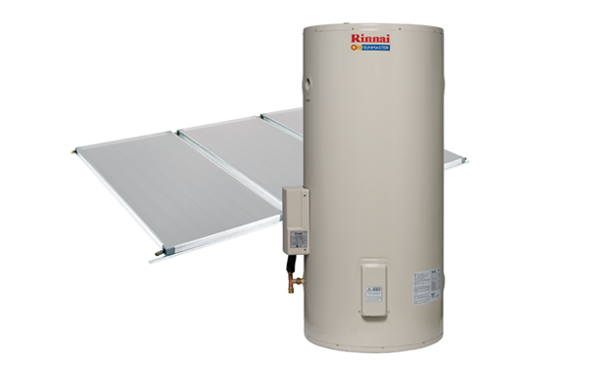

Sunmaster System 8
Sunmaster System 8
Flat Plate Solar Systems consist of a ground mounted storage tank that is installed separately to the collectors mounted on the roof. A solar control unit ensures water circulates between the tank and collectors.
Locate Your Nearest Store
High quality Vitreous Enamel 315 litre storage tank
3 x Enduro collectors with aluminium fin solar absorber to maximise efficiency
Very low boost position for added capacity of 315L
- A range of storage capacities from 175 litres to 315 litres
- Available with electric boost or continuous flow gas boost
- Minimal impact on the aesthetics of your roofline
- No need to reinforce the roof structure
- Enduro collectors use aluminium fin solar absorber to maximise efficiency
- Available with a frost protection kit
- Innovative control system using a stepless speed controlled pump
- A sacrificial anode is provided in the tank for added protection
- Warranty is 5 years on the tanks and 7 years on the collectors
| Storage capacity | Booster | No Of Enduro Collectors |
Frost protection kit available | No of Bedrooms | |
| System 1 | 175L | S20 | 1 | √ | 1 to 3 |
| System 2 | 175L | S26 | 1 | √ | 2 to 3 |
| System 3 | 215L | S20 | 2 | √ | 2 to 3 |
| System 4 | 215L | S26 | 2 | √ | 3 to 4 |
| System 5-SL | 270L | S26 | 2 | √ | 3 or more |
| System 6-SL | 250L | 3.6 kW | 2 | √ | 1 to 3 |
| System 7-SL | 315L | 3.6 kW | 2 | √ | 3 to 4 |
| System 8-SL | 315L | 3.6 kW | 3 | √ | 3 or more |
Enduro collectors MUST be used in cyclone regions (wind region C according to AS/NZS1170.2:2011) in conjunction with our cyclone frame.
Contact your local Rinnai Solar Specialist for more information.
