Prestige Flat Plate Systems
Prestige Flat Plate Systems
Flat Plate Solar Systems consist of a ground mounted storage tank that is installed separately to the collectors mounted on the roof. A small pump circulates the water from the cylinder through to the collectors to absorb the maximum available solar energy.
Locate Your Nearest Store
Stainless Steel tanks
Highly efficient Excelsior collectors with European Selective surface technology
Collectors and tank can be installed separately
- 250 or 315 litre capacity storage
- Electric boost or continuous flow gas boost configurations
- Minimal impact on the aesthetics of your roofline
- No need to reinforce the roof structure
- Excelsior collectors offering European technology absorb the maximum available solar energy
- Tanks manufactured in Australia
- No sacrificial anode is required which saves on maintenance costs
- Suitable for high wind areas to classification region D in accordance with AS/NZS1170.2:2011 using our additional cyclone frame
- Warranty is 10 years on the tanks and 7 years on the collectors
| Booster | Collectors | Boost Capacity | Average Usage (People) | High Usage (People) | ||
| Split System Gas | System B | S20 | 2 | 20L/min | 7 | 5 |
| System C | S26 | 2 | 26L/min | 7 | 5 | |
| System D | S26 | 2 | 26L/min | 8 | 6 | |
| System E | S26 | 3 | 26L/min | 8 | 6 | |
| Split System Electric | System FM | 3.6 kW | 2 | 165L | 5 | 3 |
| System GM | 3.6 kW | 2 | 185L | 6 | 4 | |
| System HM | 3.6 kW | 3 | 185L | 6 | 4 |
Prestige stainless steel solar tanks are not available in all regions of Australia, please contact your local Rinnai Solar Specialist for more information.
Photography
-

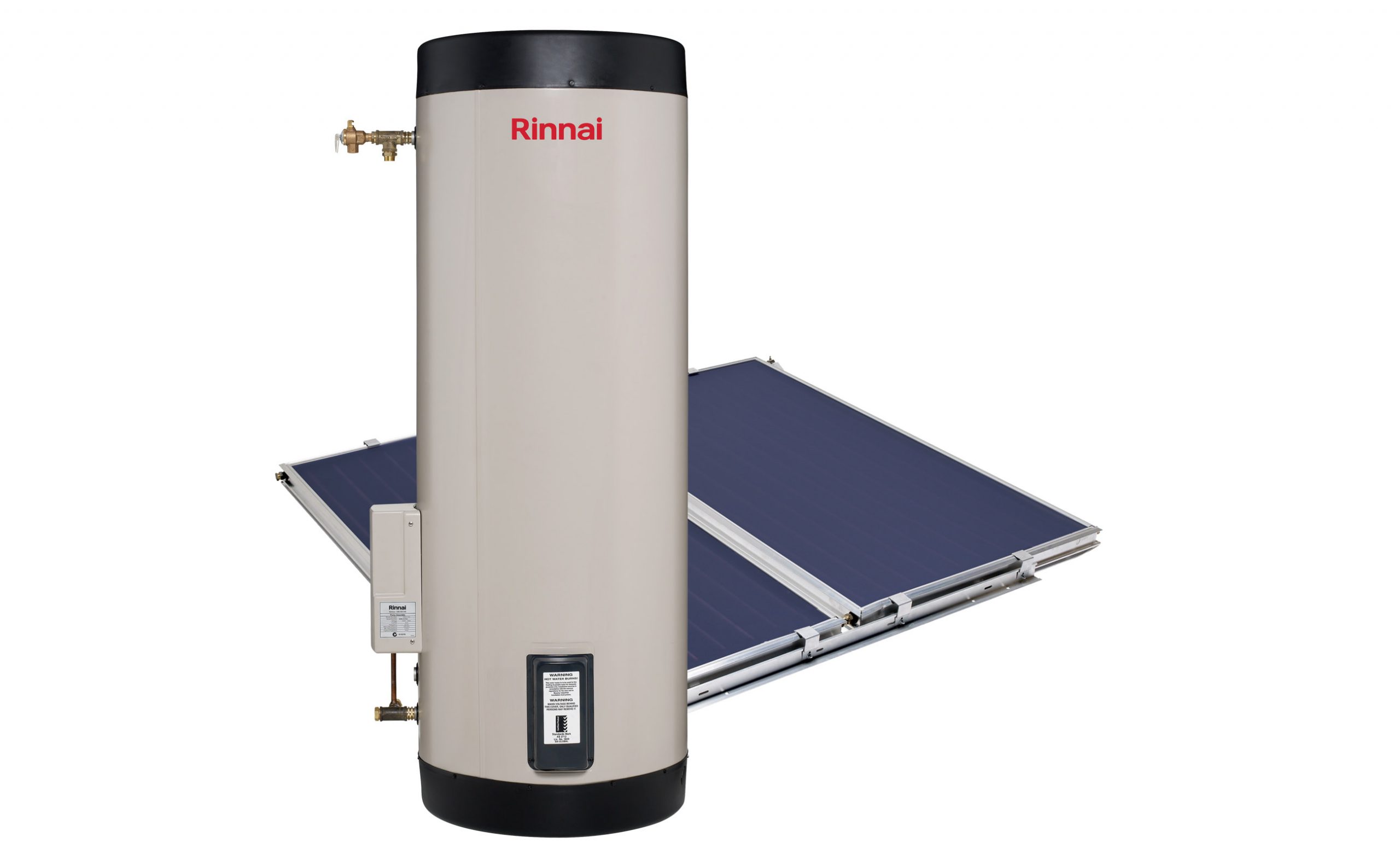

Rinnai Prestige Electric Boosted Solar Hot Water Storage Tank - Double Flat Plate CollectorPreview
-
Rinnai Prestige Electric Boosted Solar Hot Water Storage Tank - Double Flat Plate CollectorPreview
-
Rinnai Prestige Gas Boosted Solar S26 CF Continuous Flow Hot Water Storage TankPreview
-

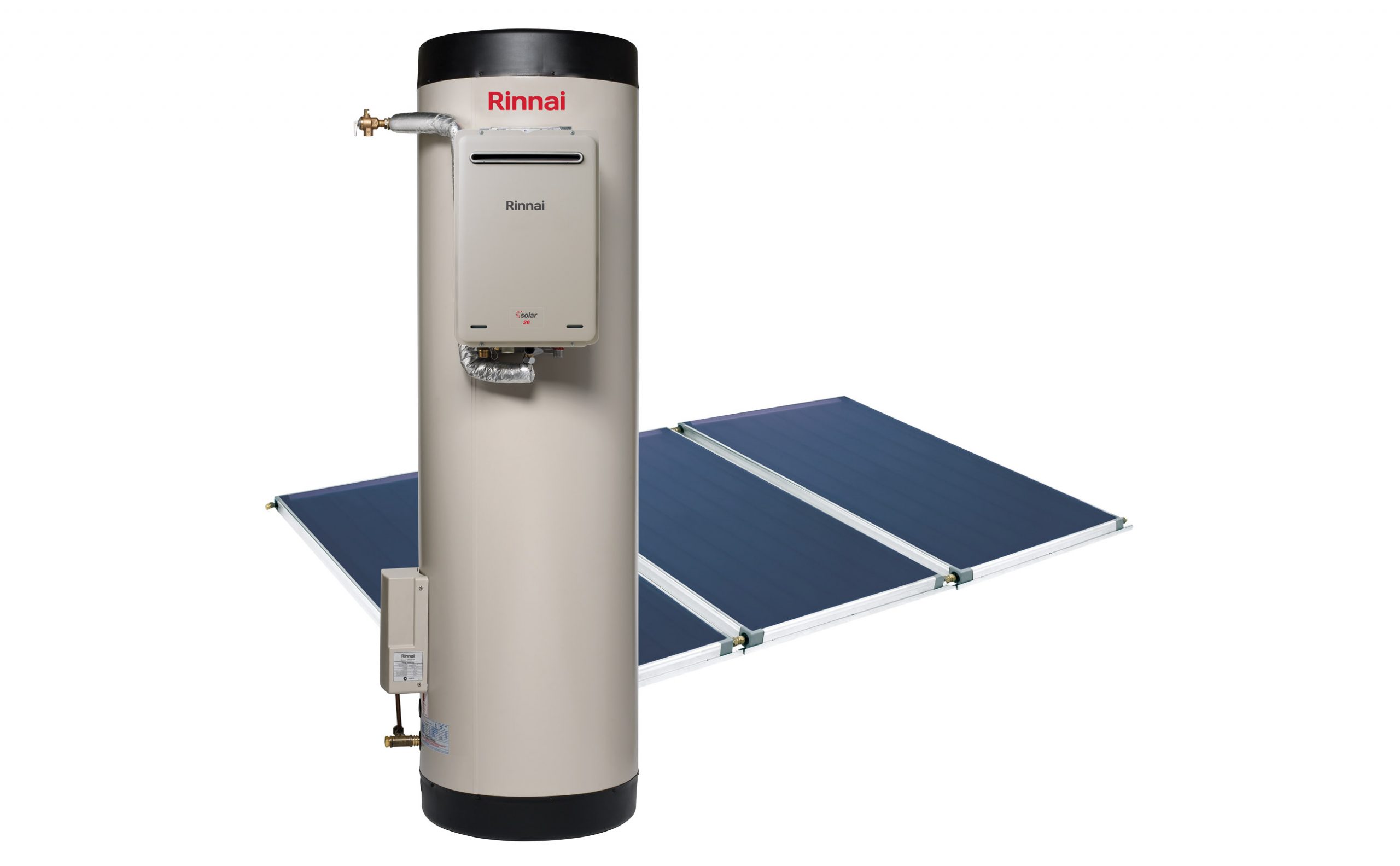

Rinnai Prestige Gas Boosted Solar S26 CF Continuous Flow Hot Water Storage Tank - Tripple Flat Plate CollectorPreview
-

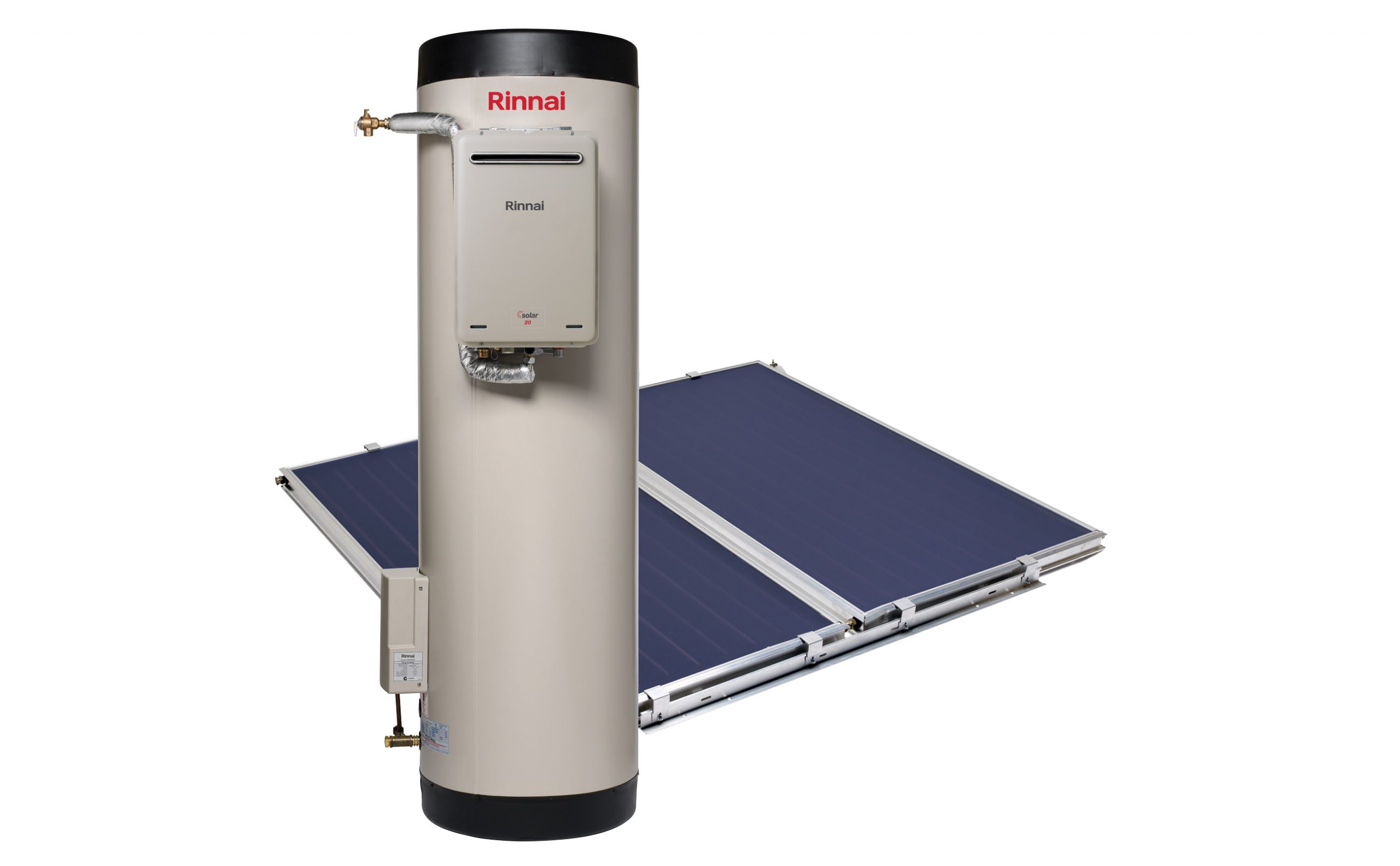

Rinnai Prestige Gas Boosted Solar S26 CF Continuous Flow Hot Water Storage Tank - Double Flat Plate CollectorPreview
-
Rinnai Prestige Gas Boosted Solar S20 CF Continuous Flow Hot Water Storage Tank - Tripple Flat Plate CollectorPreview
-

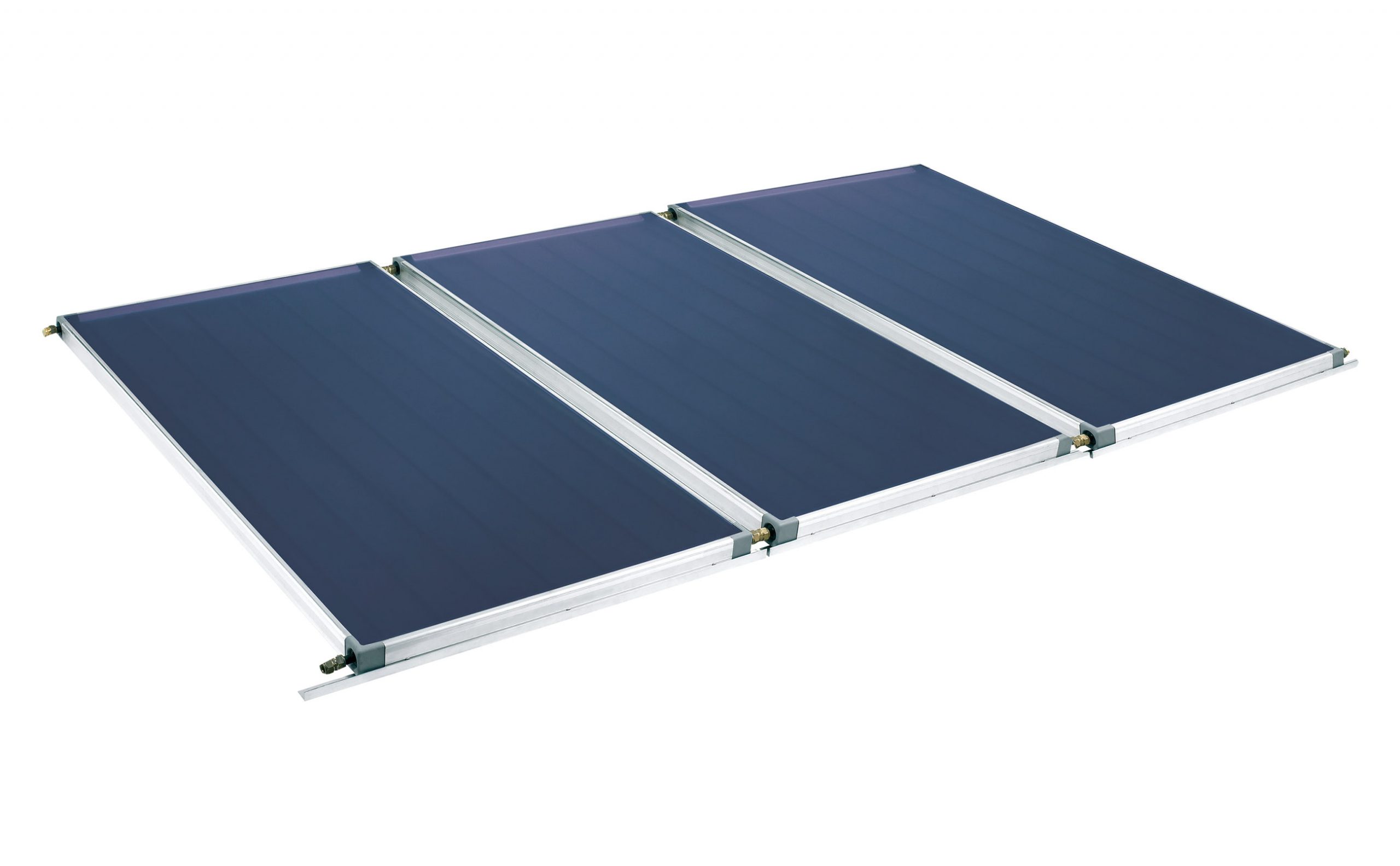

Rinnai Excelsior Flat Tripple Plate Solar Hot Water Collector Angle (1)Preview
-

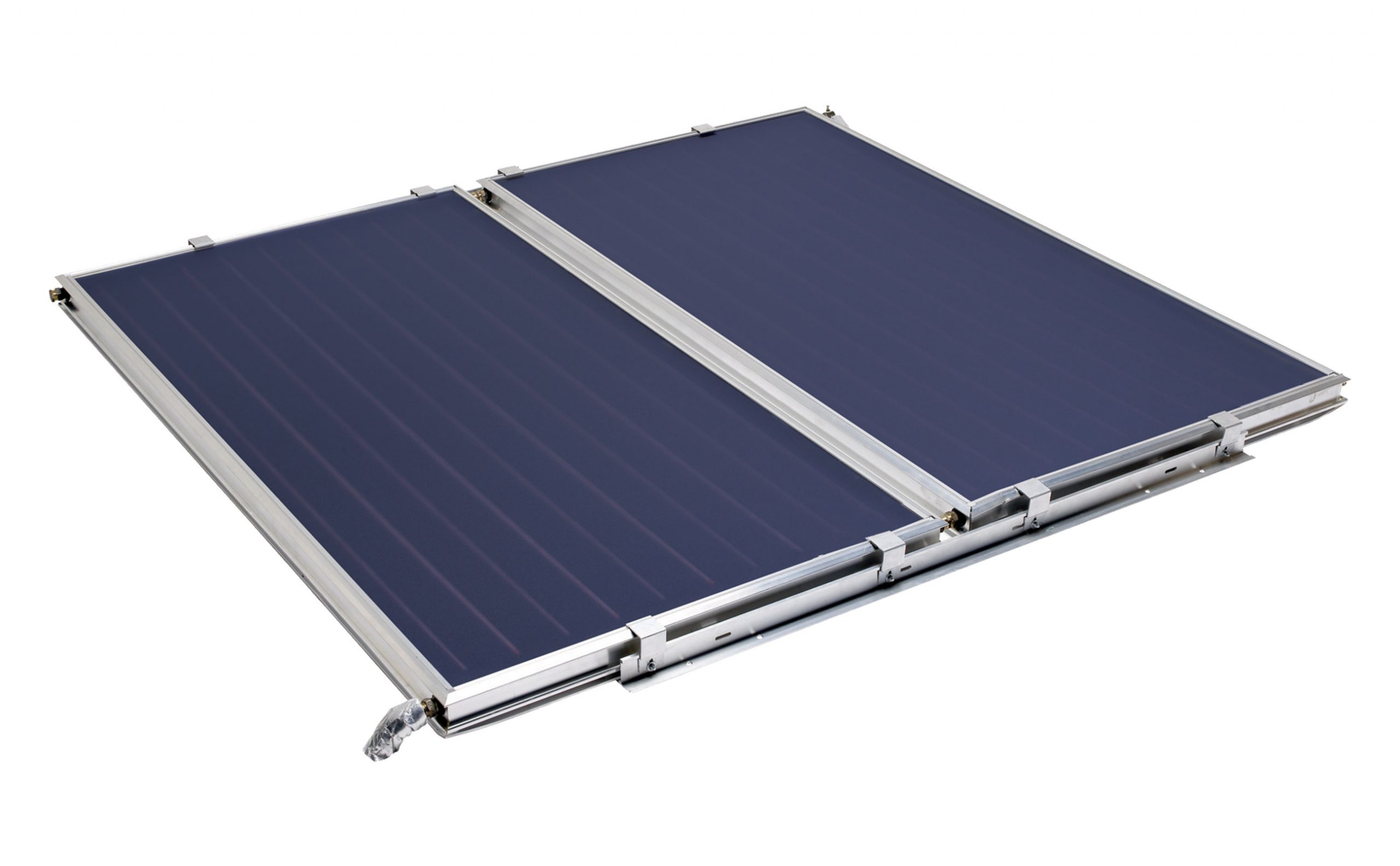

Rinnai Excelsior Flat Double Plate Solar Hot Water Collector Front (1)Preview
-
Rinnai Excelsior Flat Double Plate Solar Hot Water Collector Angle (1)Preview
-
Rinnai Prestige Gas Boosted Solar S20 CF Continuous Flow Hot Water Storage Tank - Double Flat Plate CollectorPreview
-

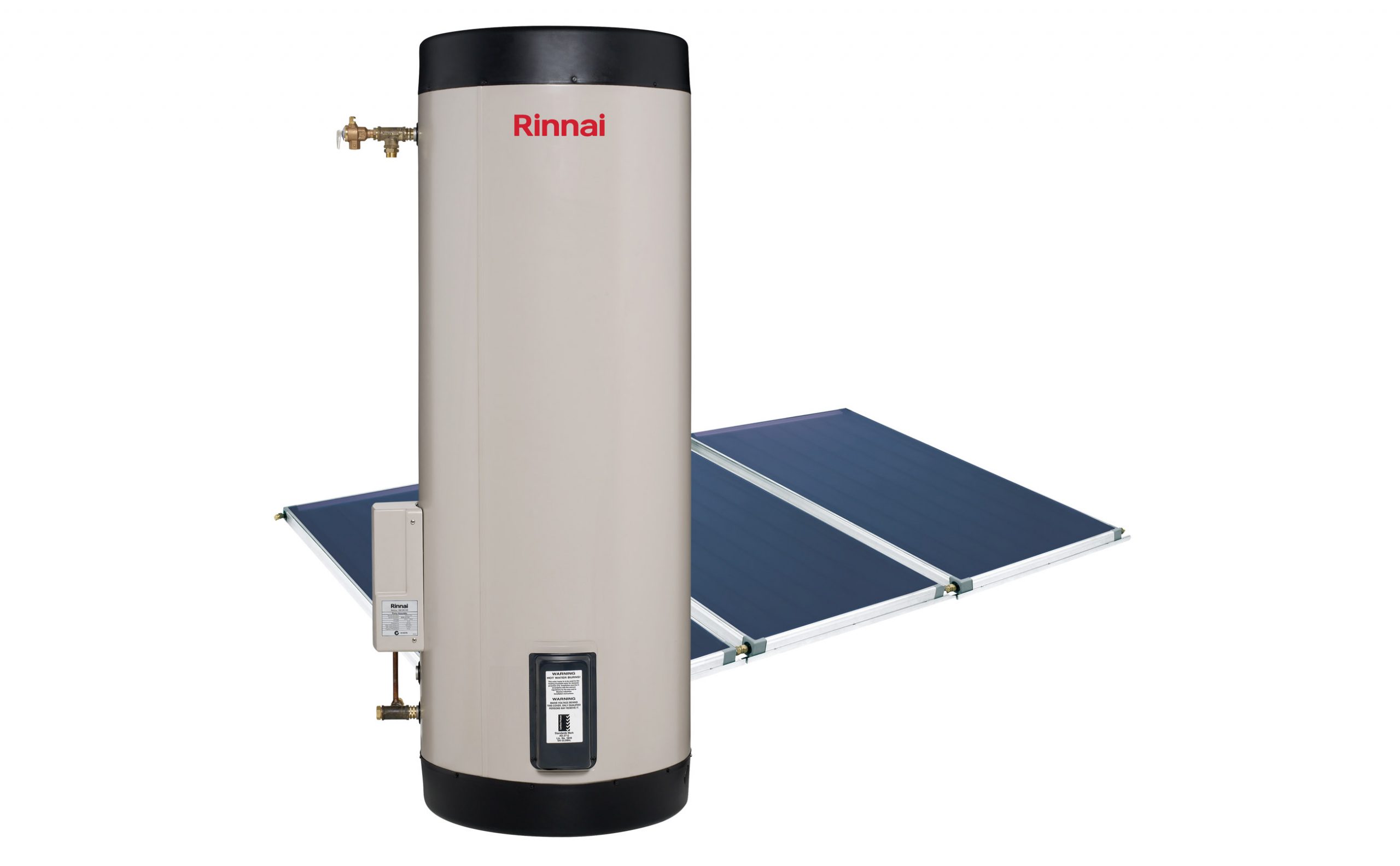

Rinnai Prestige Electric Boosted Solar Hot Water Storage Tank - Triple Flat Plate CollectorPreview
-
Rinnai Prestige Electric Boosted Hot Water Storage TankPreview
-
Rinnai Excelsior Flat Tripple Plate Solar Hot Water Collector AnglePreview
-
Rinnai Excelsior Flat Double Plate Solar Hot Water Collector FrontPreview
-
Rinnai Excelsior Flat Double Plate Solar Hot Water Collector AnglePreview
