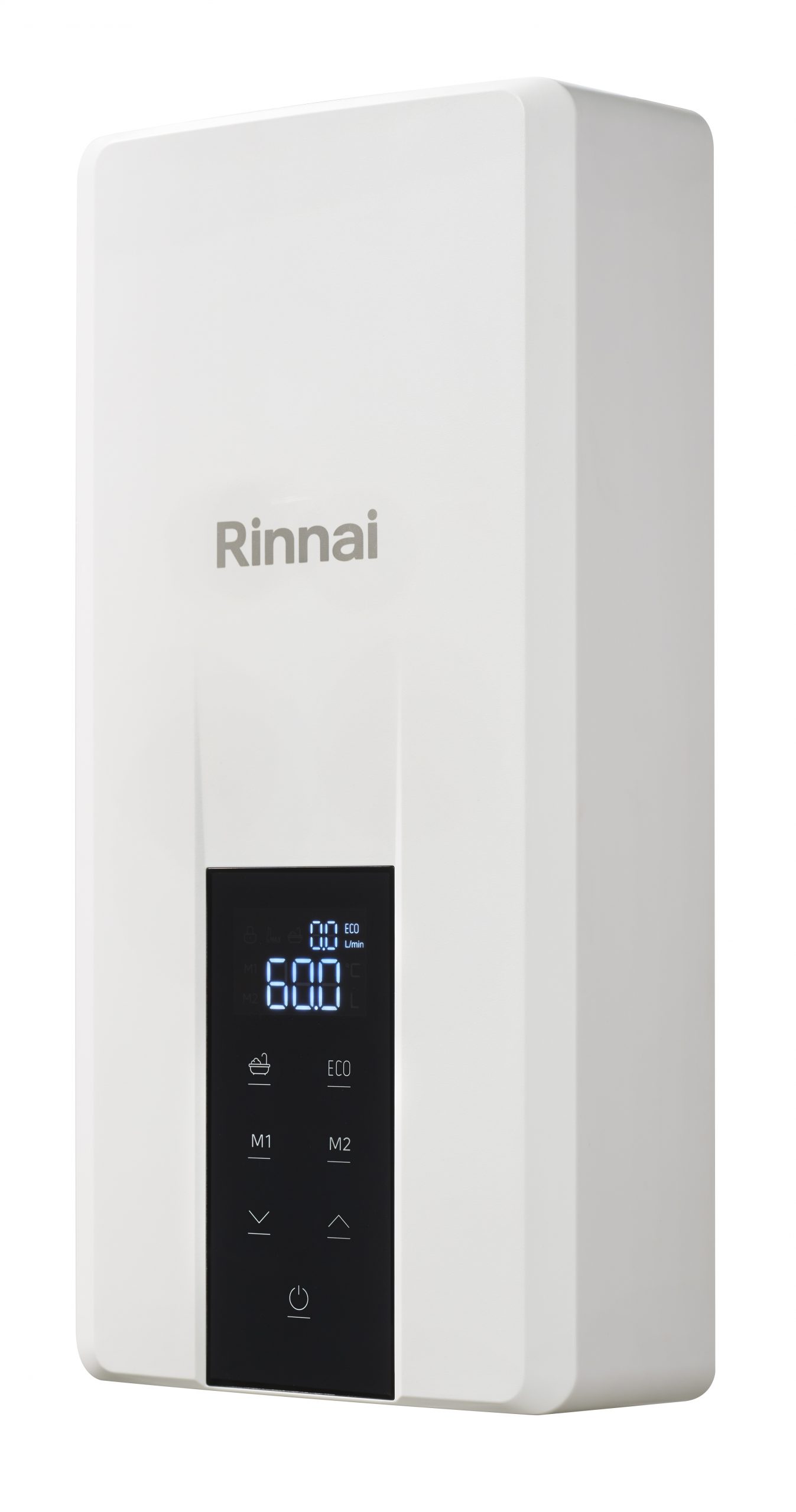

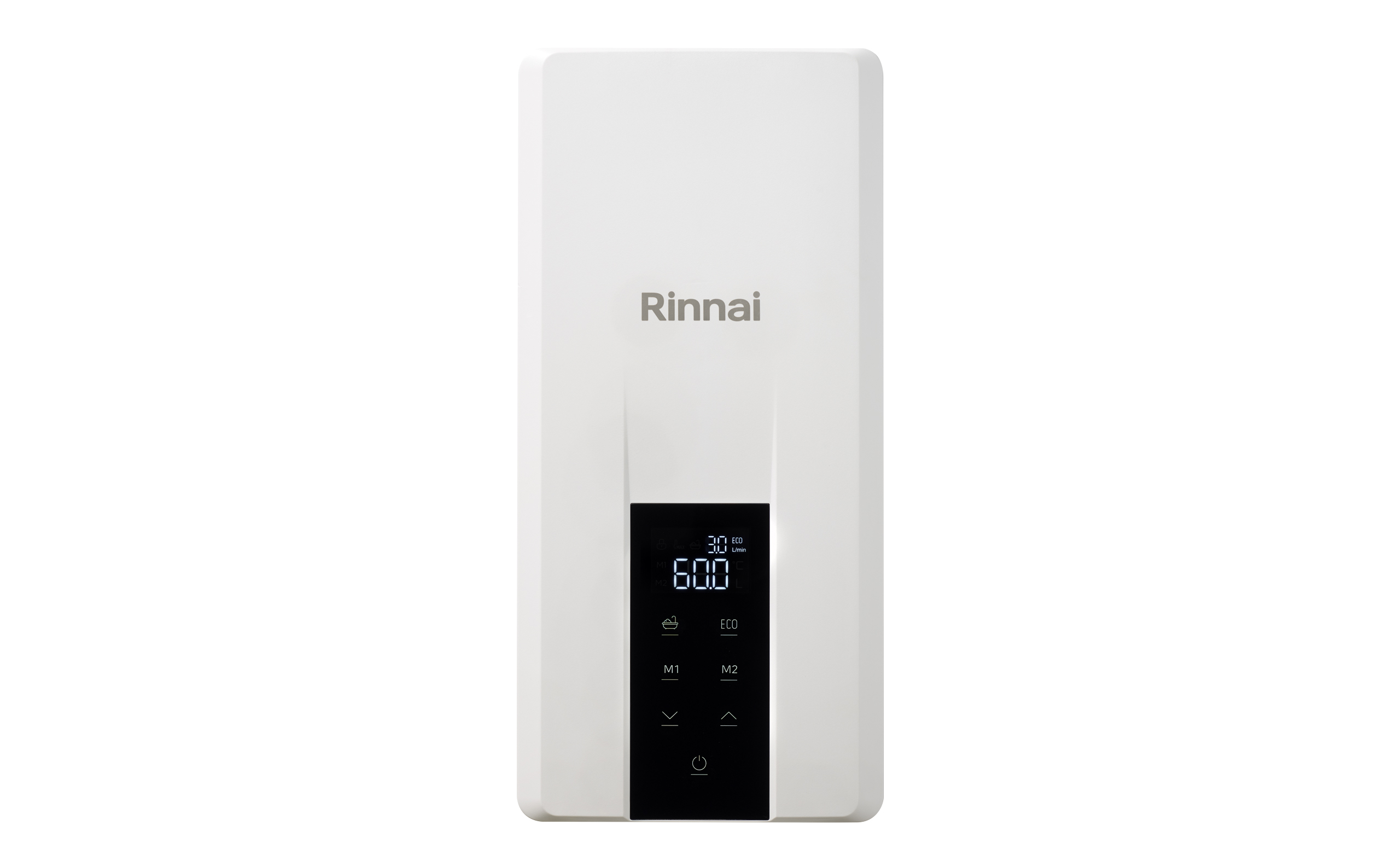

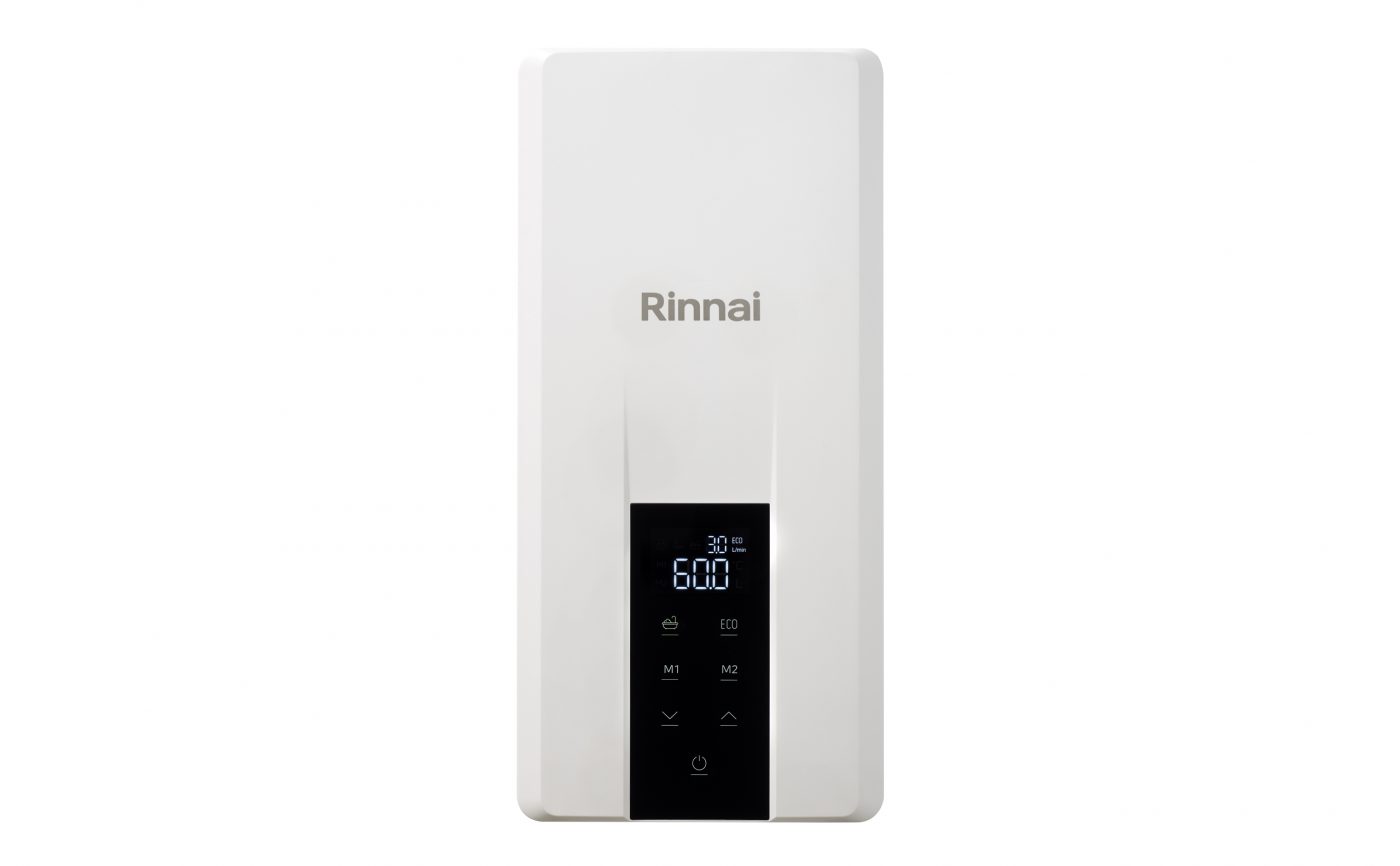

Efinity 14kW

Rinnai Efinity Electric Continuous Flow hot water system has been engineered to ensure you'll never run out of hot water. Built with customer satisfaction in mind, this fully electric Continuous Flow hot water range provides superior performance, user comfort and energy efficiency.

With 3 phase power requirements the Rinnai Efinity Electric Continuous Flow hot water system ideal for residential apartments and commercial buildings.

Electrical Requirement: 3-Phase, 50Hz

Dimensions:

H: 471, W: 227, D: 103

Locate Your Nearest Store

Specialist

Dealer

Retailer

Trade

Flame Fire Specialist

Climate Specialist

Dealer

Retailer

Trade

Precise Temperature Control

Never Runs Out of Hot Water

Adjustable Temperature and Flow Rates

Touch Screen Display

Market Leading Quality

Slimline Design

  • 3 Phase models at 50Hz
  • Available in 14KW, 19kW and 29kW with 50°C and 60°C max. output temperatures options
  • Flow rate 2.5L/min minimum operating water flow rate
  • Compliance Delivers hot water in accordance with AS 3498
  • Safety Lock function designed to prevent accidental operation
  • IP25 rated
  • For indoor use only

Model

ECF14I50

ECF14I60

Phases/ Frequency

3 phase 50Hz

Water resistivity (Ω.cm)

≥ 800

Conductivity (μS/cm)

≤ 1250

Installation

Indoor installation

Dimensions (mm) H x W x D

471 x 227 x 103

Weight (kg)

4.3

Water connection

G 1/2’ Female or R 1/2’ Male

Temperature range (°C)

30-50

30-60

Water supply pressure

Min (kPa)

100

Max (kPa)

850

Minimum operating flow rate (L/min)

2.5

Maximum inlet temperature (XC)

60

Flow rate @ 28°C temperature rise (T) (L/min)

7.3 @ 415V

Flow rate @ 50°C temperature rise (T) (L/min)

4.1 @415V
IP Rating IP25
Colour Euro White
