Infinity 32
Infinity 32
Never ending hot water for larger homes.
Designed to provide luxurious instant hot water for larger homes with 2-3 bathrooms (2-4 in warmer climates), the Rinnai Infinity 32 Continuous Flow is unparalleled in performance and eco-efficiency.
Using considerably less gas than a standard storage gas hot water system, the unit only heats water when you turn a tap on, conserving energy and reducing household running costs.
Designed for simple domestic commissioning and installation, the slimline unit withstands tough Australian conditions and saves precious outdoor space. The Rinnai Infinity 32 also comes equipped with a host of features including built-in temperature control display, enhanced safety monitor and puretemp™ stability control.
Customise and complete your Infinity 32 Continuous Flow system with our comprehensive range of hot water controllers to enhance your hot water experience
Locate Your Nearest Store
6.0 Star efficiency rating
Never runs out of hot water
Precise temperature control for safety and convenience
Status operation monitor
Puretemp™ temperature stability technology
LPG or natural gas models available
6.0 Star Rating*
- Low running costs
- Highly efficient
- Low greenhouse gas emissions
Superior Technology
- Quality Japanese design and manufacturing
- Precise temperature control for safety and convenience
- Compact design allows installation flexibility
- Suitable for higher ambient water temperatures
- Compatible with low flow rated shower fixtures (3 Star - 7.0 to 9.0 l/min)
Rinnai Quality
- After sales support
The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact Rinnai to confirm product information.
|
Dimensions (mm) : Height |
600 |
|
Dimensions (mm) : Width |
470 |
|
Dimensions (mm) : Depth |
271 |
|
Colours |
White |
|
Factory Default Temperature (Celsius) |
50 or 60 |
|
Water Pressure (kPa) : Minimum |
200 |
|
Water Pressure (kPa) : Maximum |
1000 |
|
Gas Rate Min/Max (Mj/h) : NG |
20/250 |
|
Flow Rate 25 Degrees C/Max : l/min |
32/37 |
|
Star Rating |
6.0 |
|

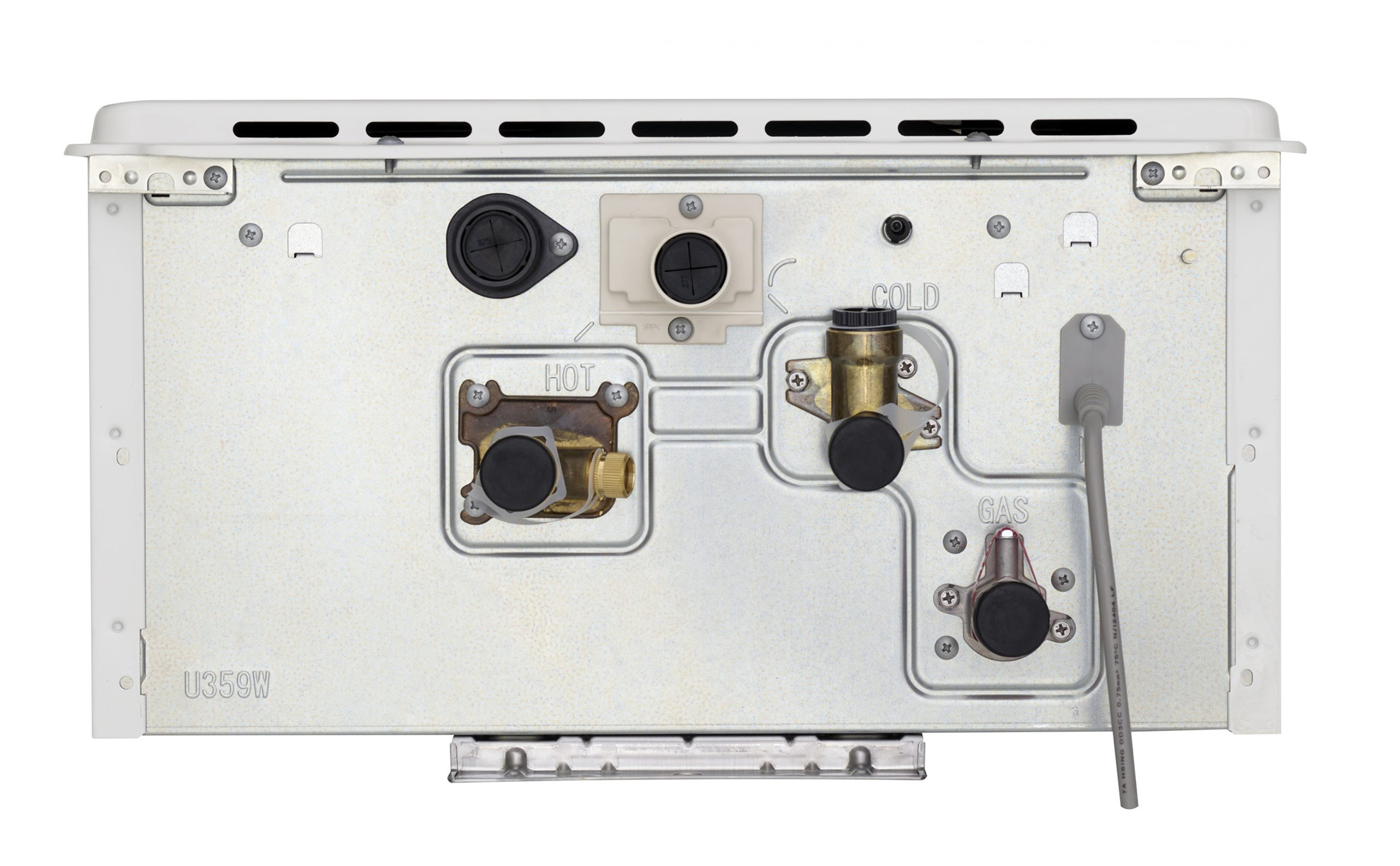

Connection Sizes Gas/Hot/Cold (mm) |
20/20/20 |
|
Status Monitor |
Yes |
|
Dimensions (mm) : Height Inc Brackets |
640 |
|
Dimensions (mm) : Hot Water Outlet (From Wall) |
115 |
|
Dimensions (mm) : Hot Water Outlet (Left from Centre) |
61 |
|
Dimensions (mm) : Cold Water Inlet (From Wall) |
125 |
|
Dimensions (mm) : Cold Water Inlet (Right from Centre) |
67 |
|
Dimensions (mm) : Gas Connection (From Wall) |
61 |
|
Dimensions (mm) : Gas Connection (Right from Centre) |
120 |
|
Dimensions (mm) : Gas Connection Length (From Base) |
37 |
|
Dimensions (mm) : Cold Connection Length (From Base) |
49 |
|
Weight (kg) |
23 |
FAQ
-
Which hot water system suits my needs?
Which hot water system suits my needs?
You can use Rinnai’s hot water selector listed on this website to help you in your selection.
-
Where to buy?
Where to buy?
You can use the store locator on our website to find your closest store.
-
What does the energy Star rating mean?
What does the energy Star rating mean?
Generally, the more stars, the higher the energy Star rating, the more energy efficient the product is.
