ES 1500 Electric Fire
ES 1500 Electric Fire

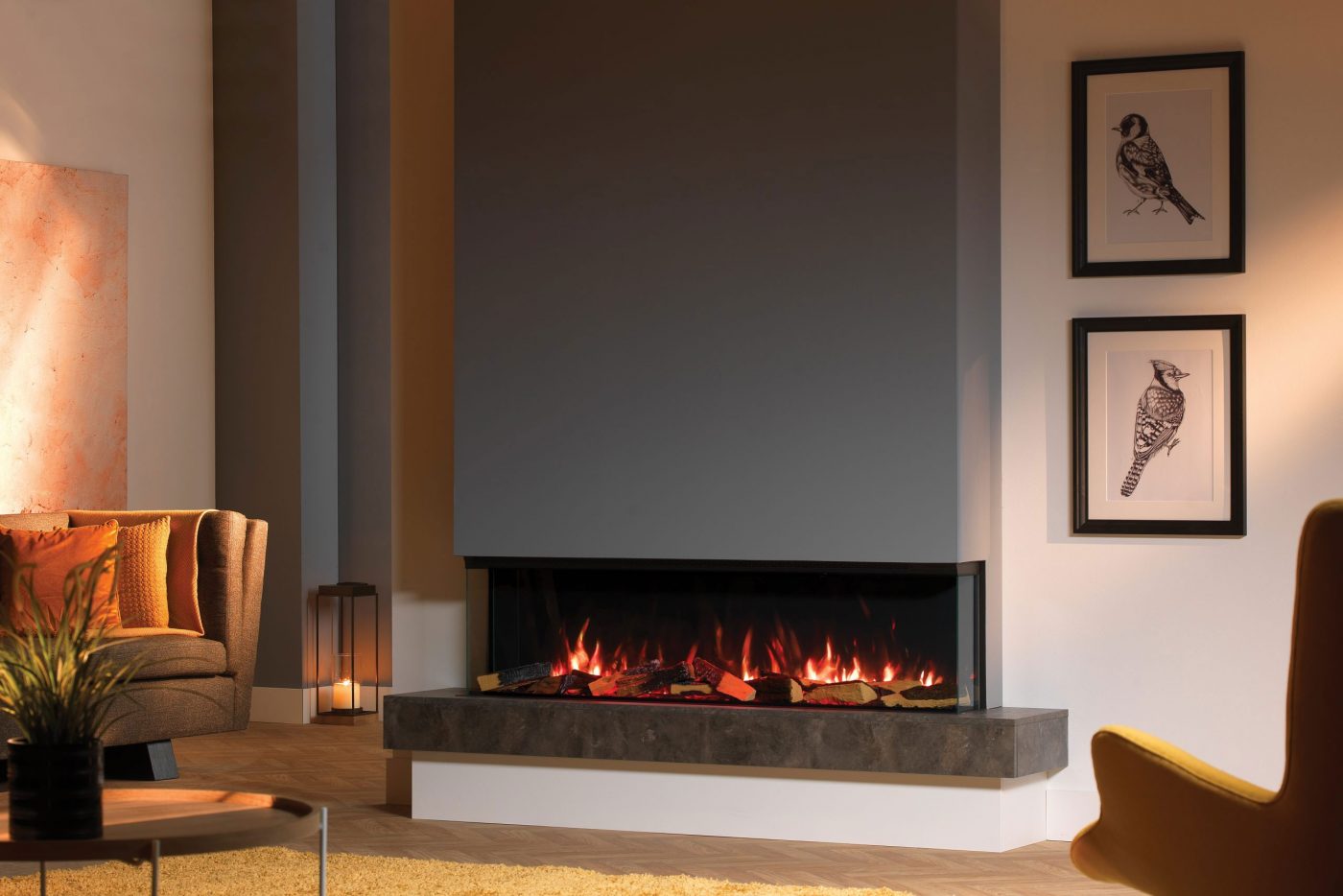

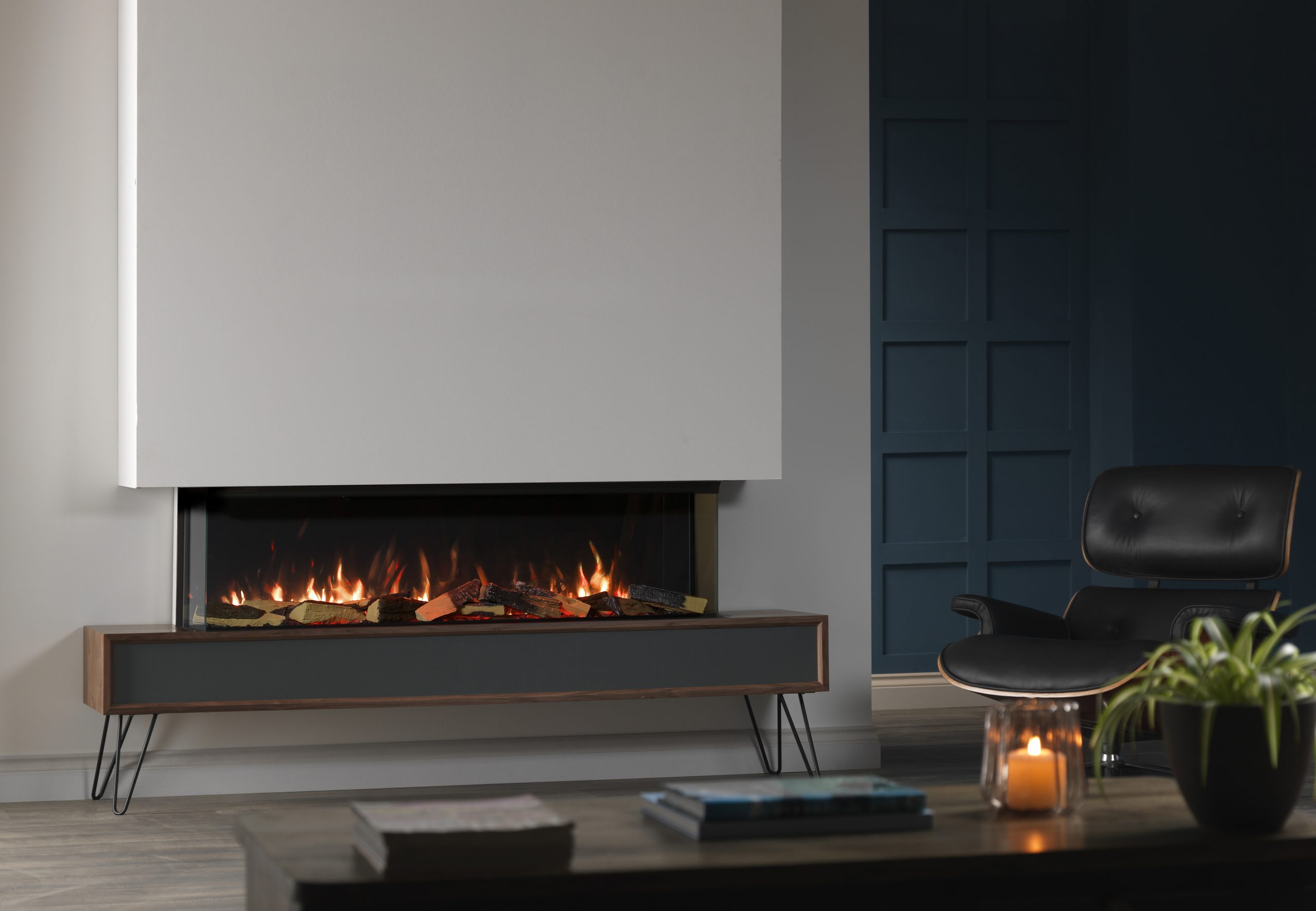

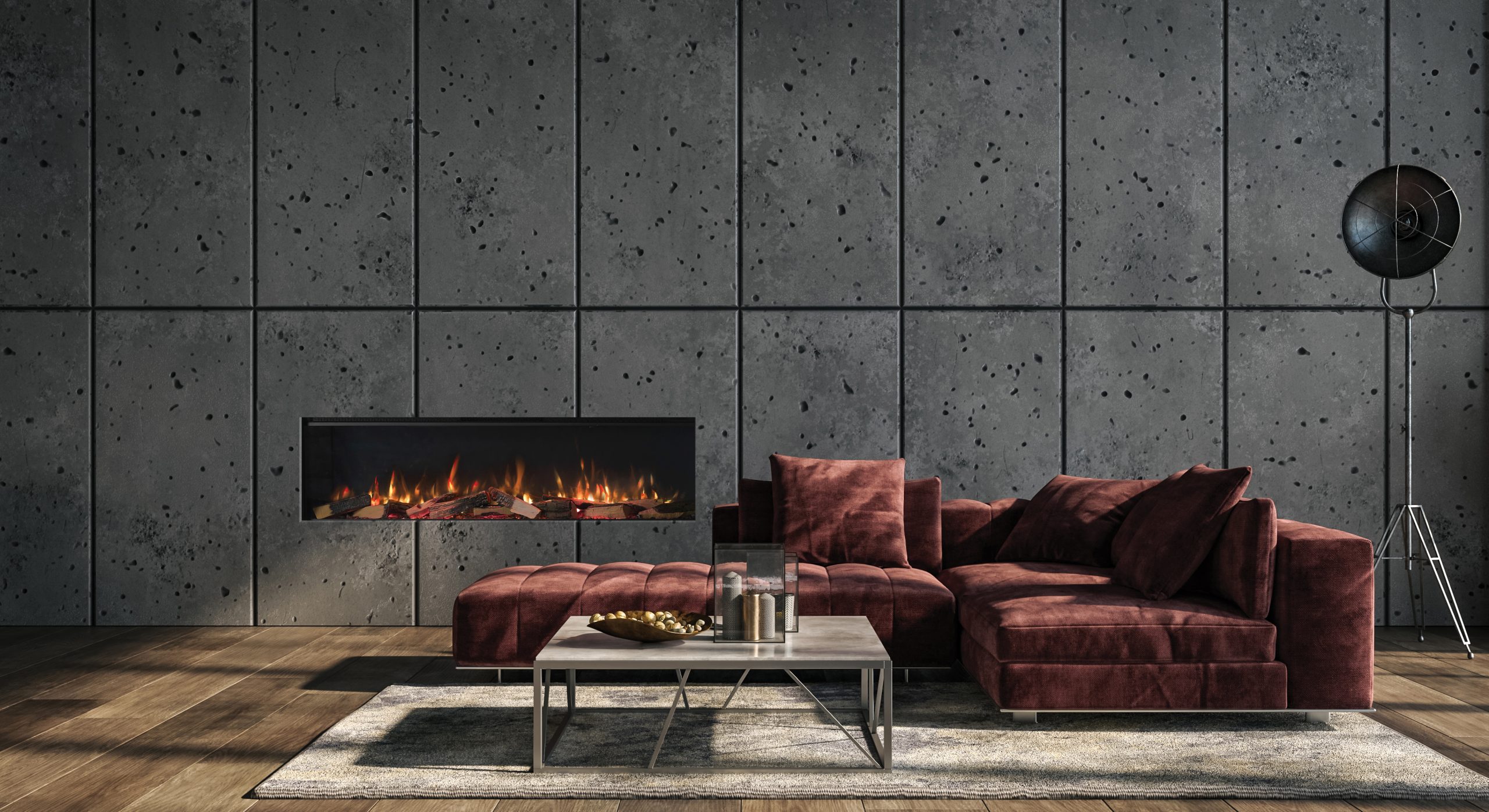

Whether you want to update or build a contemporary dream home, the ES 1500 will transform any room with a sense of luxury. This fire is 1.5 metres in length and can be installed in either inset, panoramic (3 sided) or corner (left or right) aspect, allowing you full creative control of your space.
Locate Your Nearest Store
Unique TriLight technology
Built in Wi-Fi connectivity
Smart Technology – synchronise with your smart device
Instant heat and hyper realistic flame pattern
- 548 x 1530 x 296mm (Dimensions H x W x D)
- Multi-option RGB flame and fuel bed colours with user preset options
- Optimised heater position & minimal visible vents
- 7 day programmable timer with adaptive smart heating
- Convenient multiple control options (Manual, Remote control or App)
- Heat output – 1.8kW (3 Heating modes with cool blow function)
- Easy to install

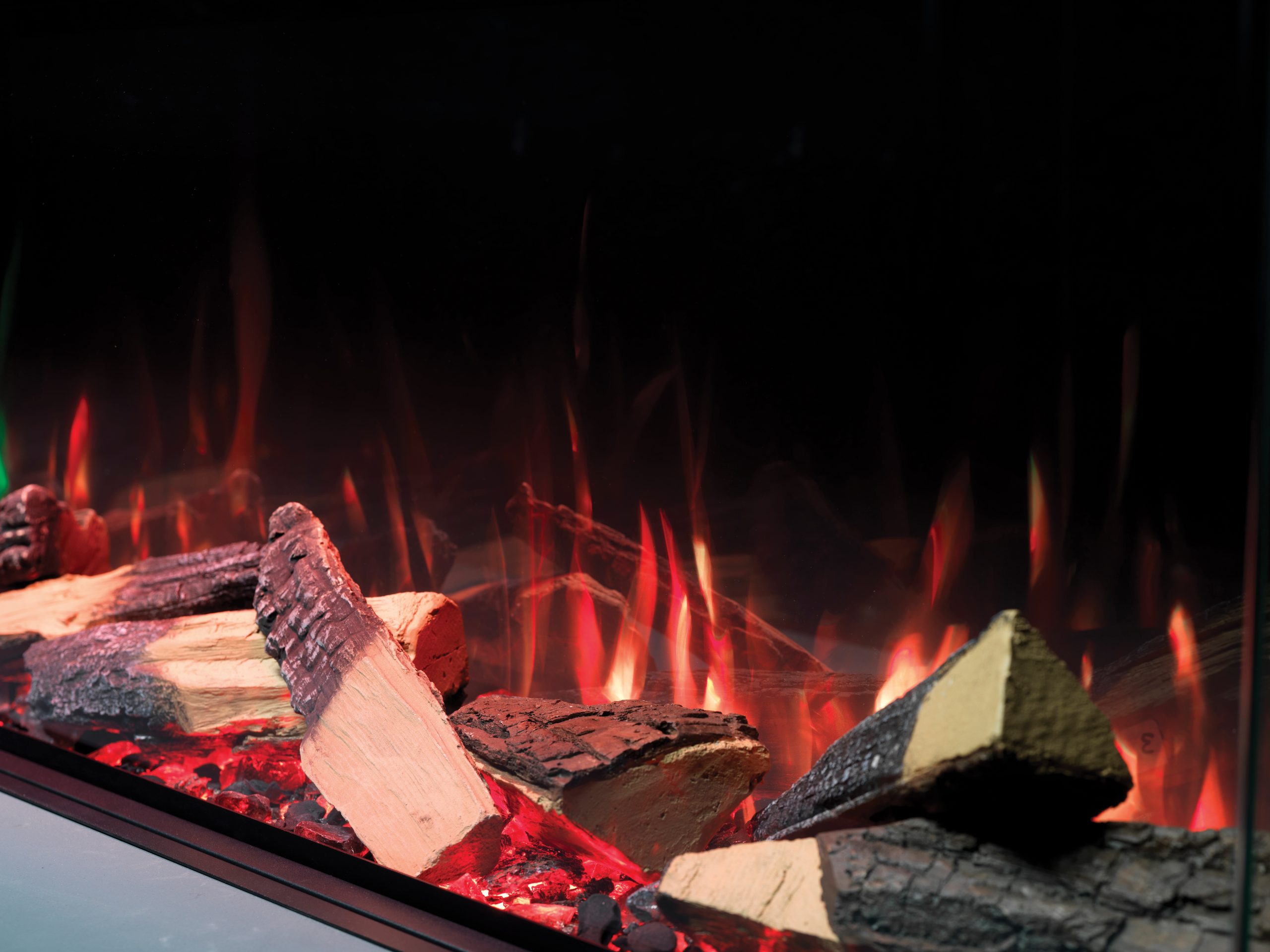

- Ultra-realistic glowing fuel bed with burning embers with customisable log layout
- Wall mountable (Supplied with brackets)
- 6 pre-set Trilight themes (Autumn Campfire, Emberglow, Inferno, Noir, Fire & Ice, Nebular)
- 3 independently controlled lighting effects Flames – colour & brightness, Under fuel bed – colour & brightness, Above fuel bed – colour and brightness
- Open door/window detection
The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact Rinnai to confirm product information.
| Model | Unit | ES1500 | |||||
| Weight | kg | 62.8 | |||||
| Dimensions H x W x D | mm | 548 x 1530 x 296 | |||||
| Supply Voltage | VAC / Hz | 230-240 / 50 | |||||
| Three pin plug type | Amp | 10 | |||||
| Length of power lead | mm | 1600 | |||||
| Max. Power Consumption | W | 2000 | |||||
| Power for Flame Effect | W | 52 | |||||
| HEAT OUTPUT | SYMBOL | VALUE | UNIT | ||||
| Nominal Heat Output | Pnom | 1.8 | kW | ||||
| Minimum Heat Output | Pmin | 0.9 | kW | ||||
| Maximum Continuous Heat Output | Pmax | 1.9 | kW | ||||
| AUXILIARY ELECTRICITY CONSUMPTION | |||||||
| At Nominal Heat Output | elmax | 12.5 | W | ||||
| At Minimum Heat Output | elmax | 12 | W | ||||
| In Standby Mode | elmax | 1.1 | W | ||||
| TYPE OF HEAT OUTPUT / ROOM TEMPERATURE CONTROL | YES/NO | ||||||
| With electronic room temperature control | YES | ||||||
| Electronic room temperature control plus day timer | YES | ||||||
| Electronic room temperature control plus week timer | YES | ||||||
| OTHER CONTROL OPTIONS | YES/NO | ||||||
| Room temperature control, with open window detection | YES | ||||||
| With distance control option | YES | ||||||
| With adaptive start control | YES | ||||||
Warranty
| Product Groups | Parts | Labour | ||||||||
| Residential and Light Commercial | Electric Fire Heater | 5 Years | 5 Years | |||||||
