SP6 Series Gas Ducted Heating System
SP6 Series Gas Ducted Heating System
Expertly designed and energy efficient, the SP6 Series is the ultimate ducted gas home heating system.
With the highest possible energy rating of 6 stars, the SP6 Series saves you 30% annually compared to other standard 3 star gas ducted gas heating systems. This is achieved through Quatrra technology – meaning you get superior temperatures with reduced running costs and carbon emissions.
The superior SP6 Series is compatible with a host of add-on features including ZonePlus™, DualComfort™ and the Rinnai Touch Wi-Fi app, giving you full customisation and control of your home heating system. Enjoy the comforts of gas ducted gas heating and cooling all year long, with the Brivis ICE™ add-on feature.
Selected models are also available in Universal Liquefied Petroleum Gas (ULPG).
Locate Your Nearest Store
6 star range
High performance and efficiency
Complete range of sizes
- Highest possible gas energy rating
- Rinnai ZonePlus™ compatible
- Reduced running costs
- Selected models available in ULPG
- Reduced carbon emissions
- Lay down kit (internal unit option)
- Brivis ICE™ compatible
- Five year parts and labour
| Rinnai Gas Ducted Heater | Star Rating | Capacity (kW) | Airflow (L/s) @ 100Pa ESP | Dimensions
(L x W x H) |
Net Weight (kg) |
| RSP615IN | 6 | 15.5 | 630 | 1021 x 395 x 634 | 57 |
| RSP623EN | 6 | 23 | 660 | 1046 x 416 x 750 | 68 |
| RSP623EN-XA | 6 | 23 | 705 | 1046 x 416 x 750 | 68 |
| RSP623IN | 6 | 23 | 720 | 1021 x 395 x 634 | 58 |
| RSP623IN-XA | 6 | 23 | 755 | 1021 x 395 x 634 | 58 |
| RSP630EN | 6 | 29 | 890 | 1096 x 568 x 810 | 89 |
| RSP630EN-XA | 6 | 29 | 1020 | 1096 x 568 x 810 | 89 |
| RSP630IN | 6 | 29 | 1085 | 1070 x 547 x 684 | 78 |
| RSP630IN-XA | 6 | 29 | 1120 | 1070 x 547 x 684 | 78 |
| RSP635IN | 6 | 35 | 1155 | 1070 x 547 x 684 | 78 |
Photography
-

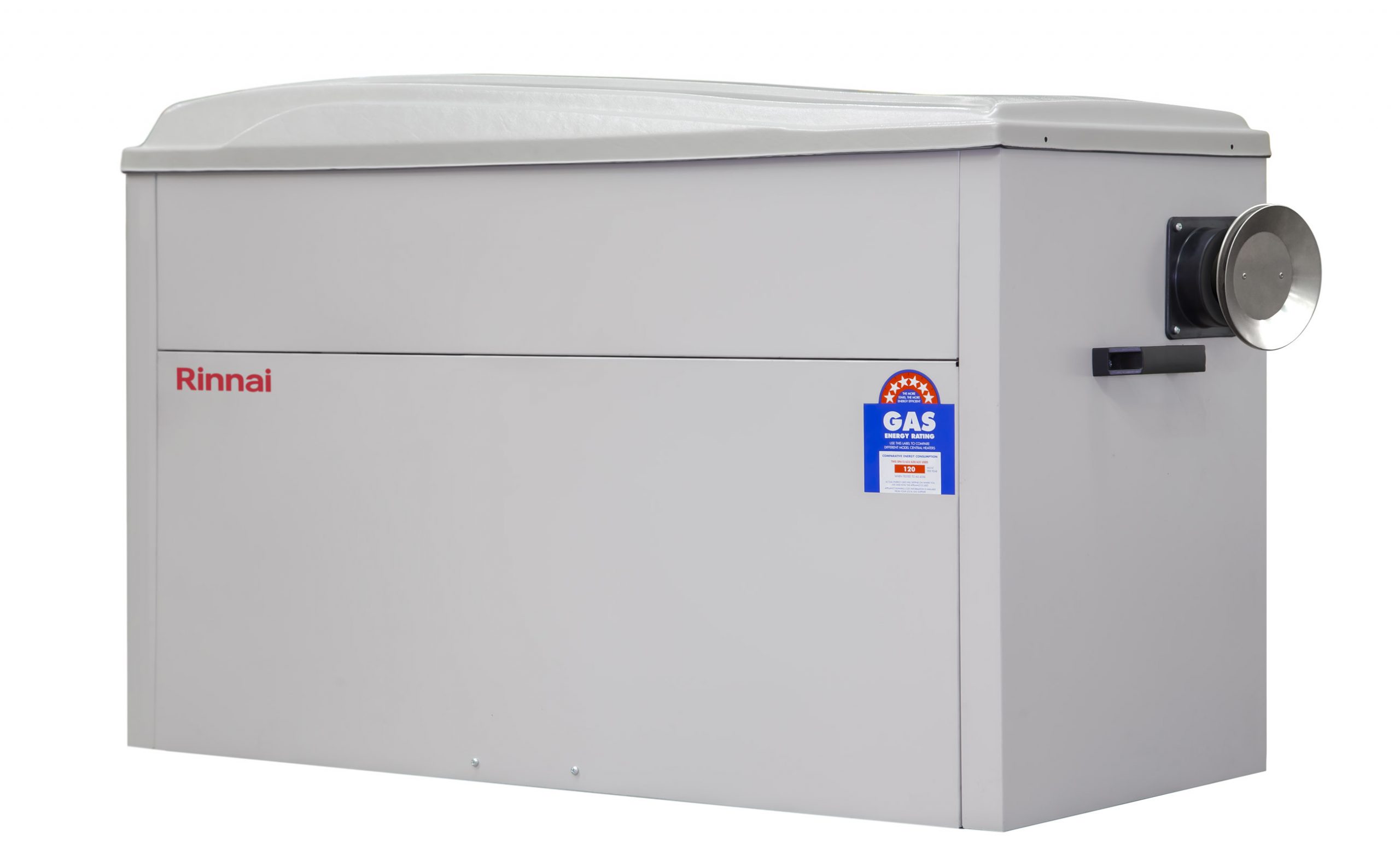

Rinnai SP6 6 Star Angle Right External Outdoors (Flue Terminal onPreview
-
Rinnai SP6 6 Star Angle Right External Outdoors (Flue Terminal onPreview
-

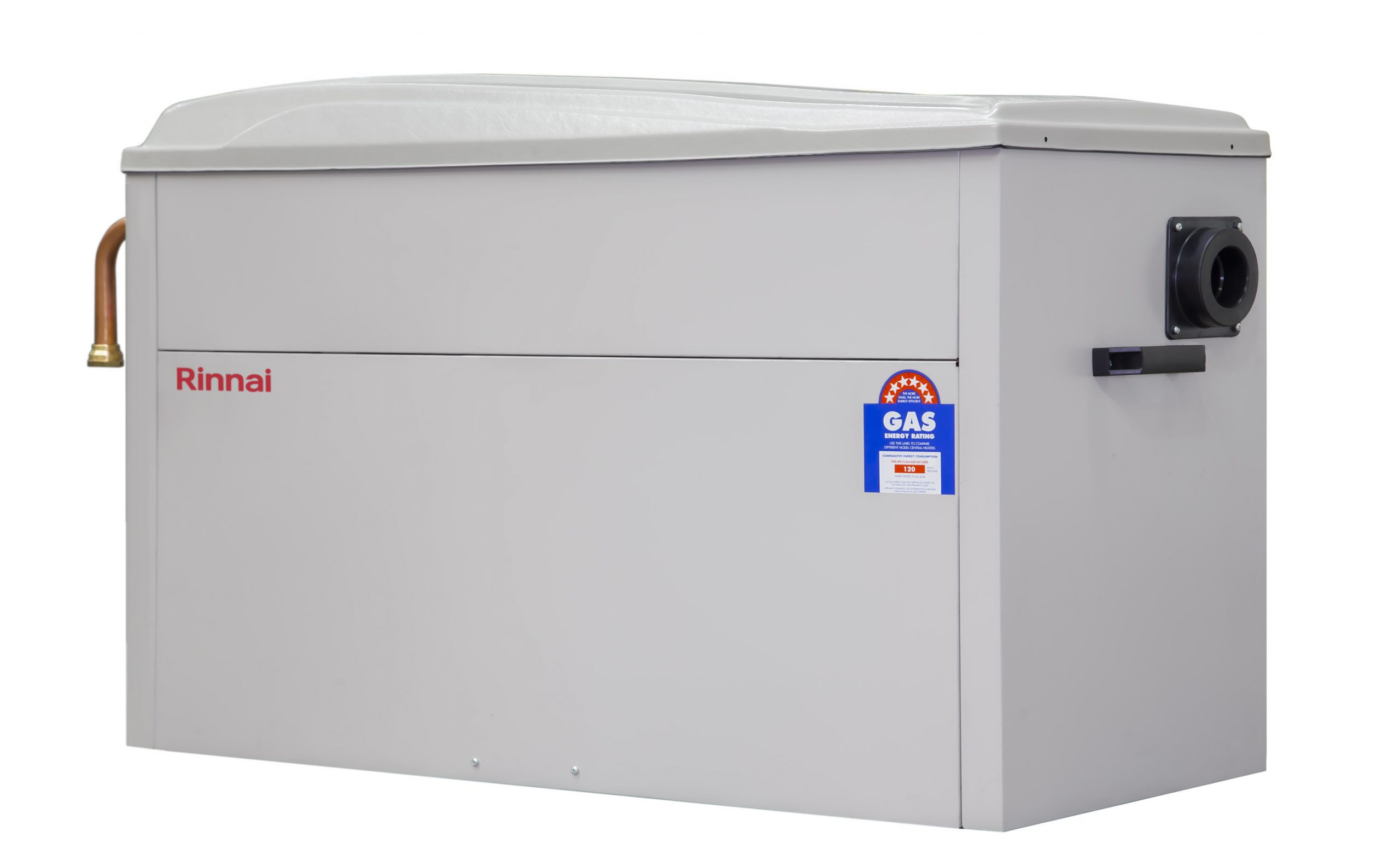

Rinnai SP6 6 Star Angle Right External Outdoors (Flue Terminal off)Preview
-

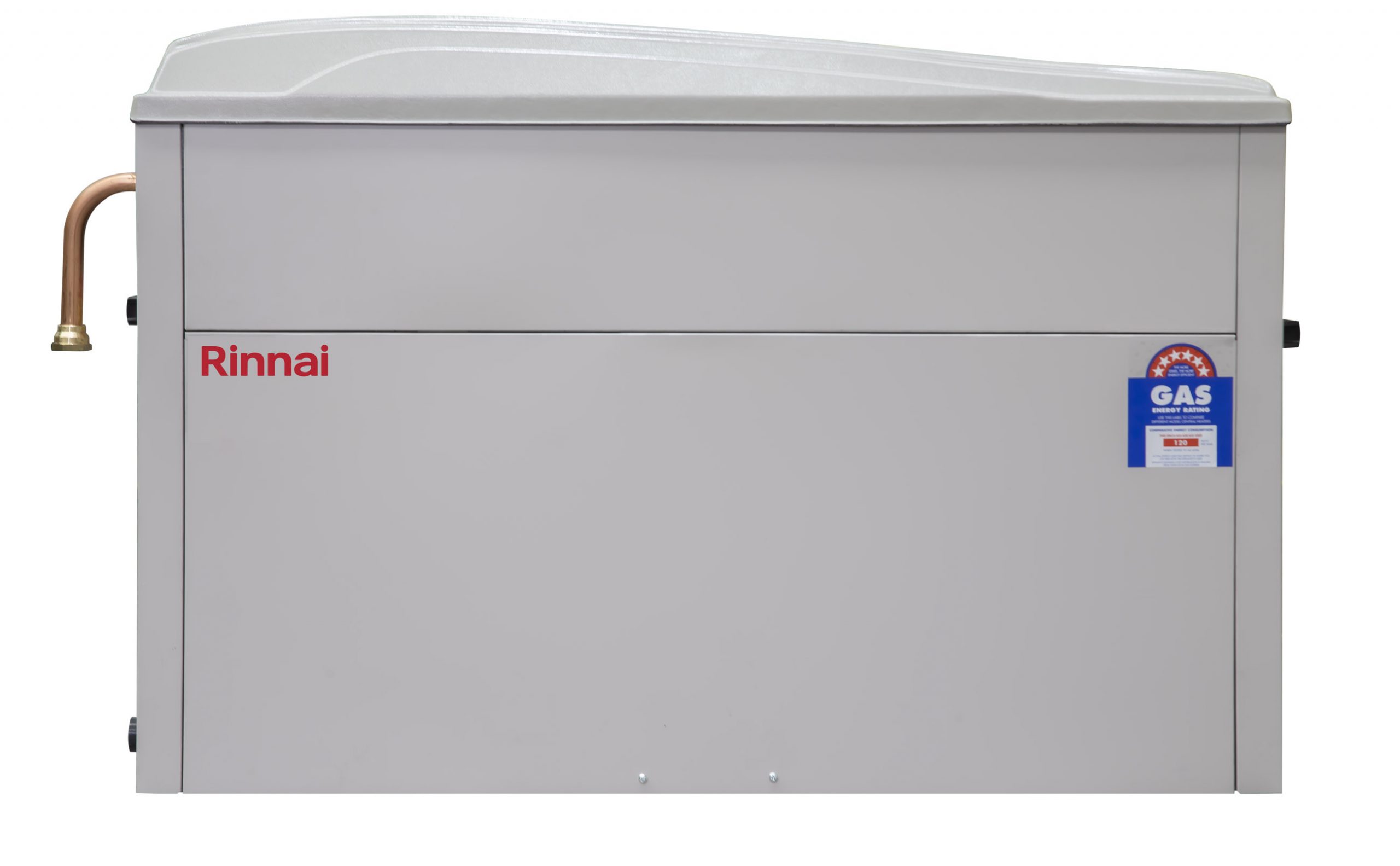

Rinnai SP6 6 Star Side on External OutdoorsPreview
-

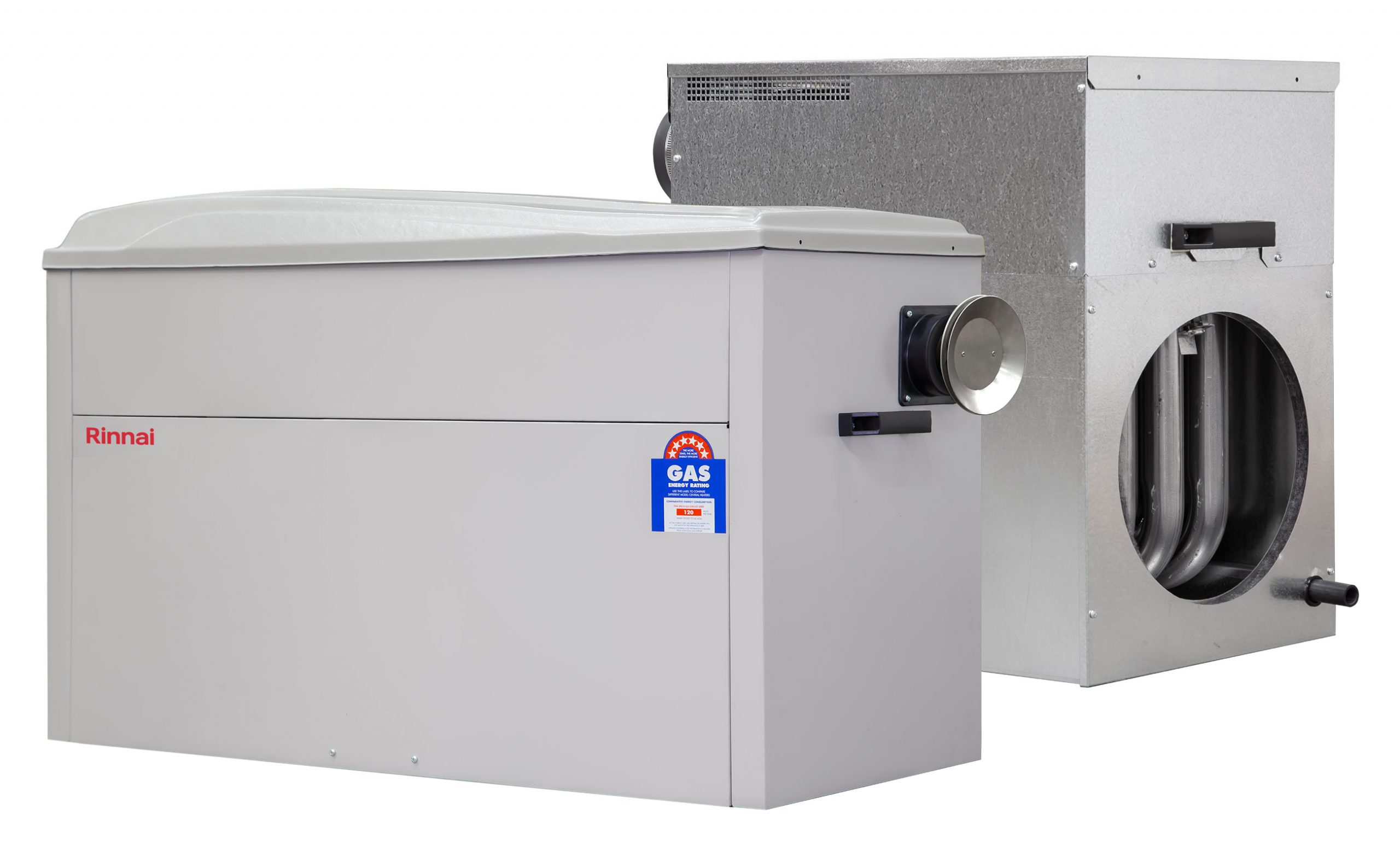

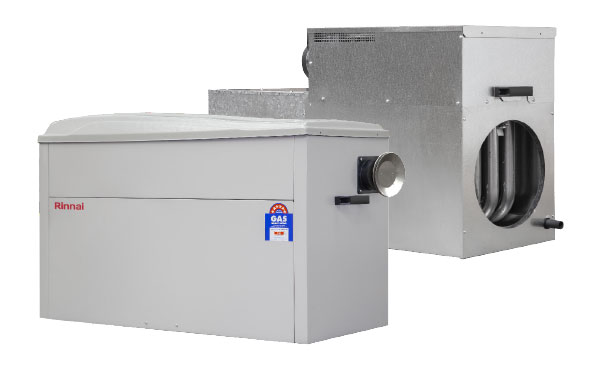

Rinnai SP6 6 Star Angle Right Internal and External In Roof and OutroodsPreview
-

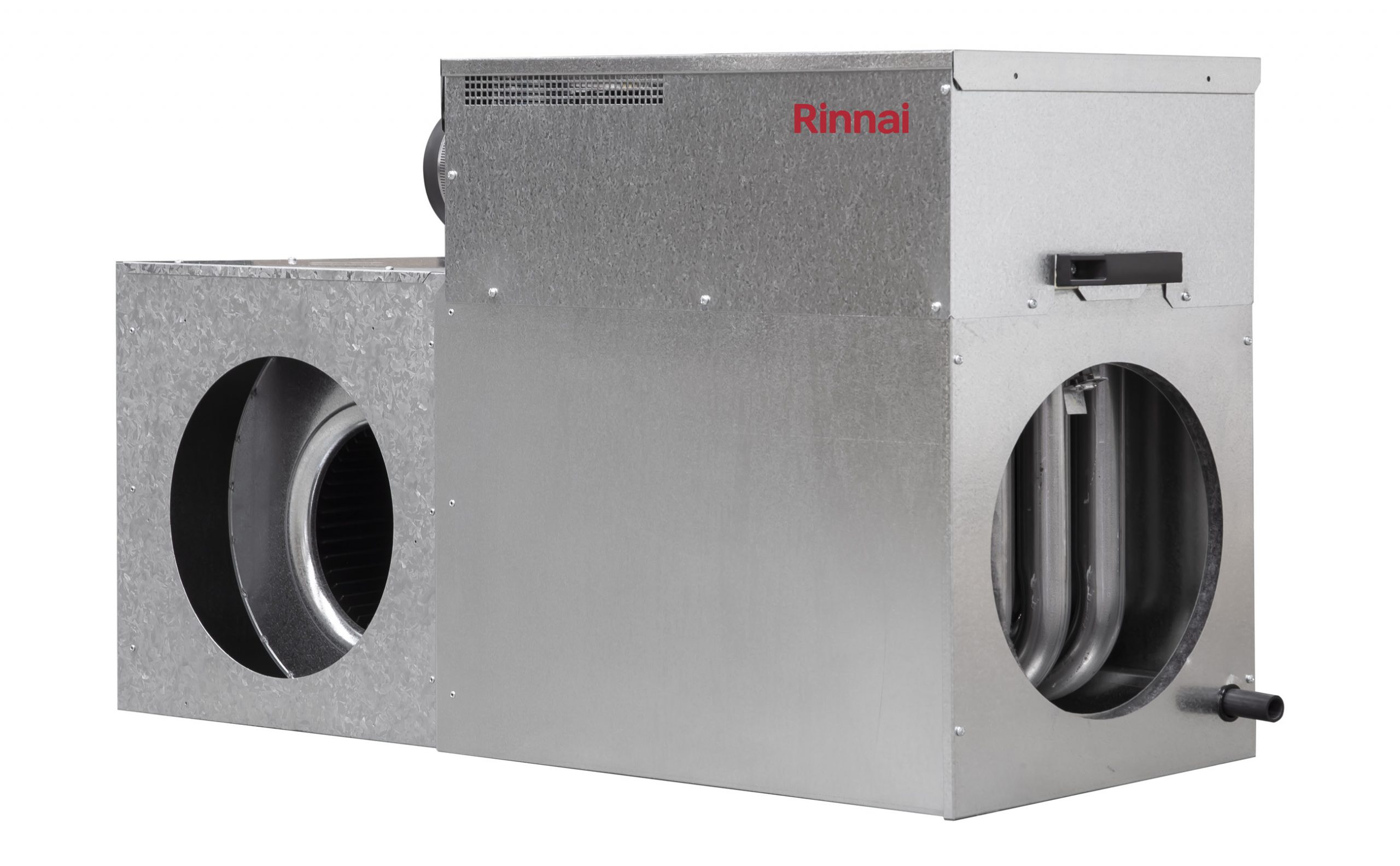

Rinnai SP6 6 Star Angle Right Internal (In roof) 2Preview
-

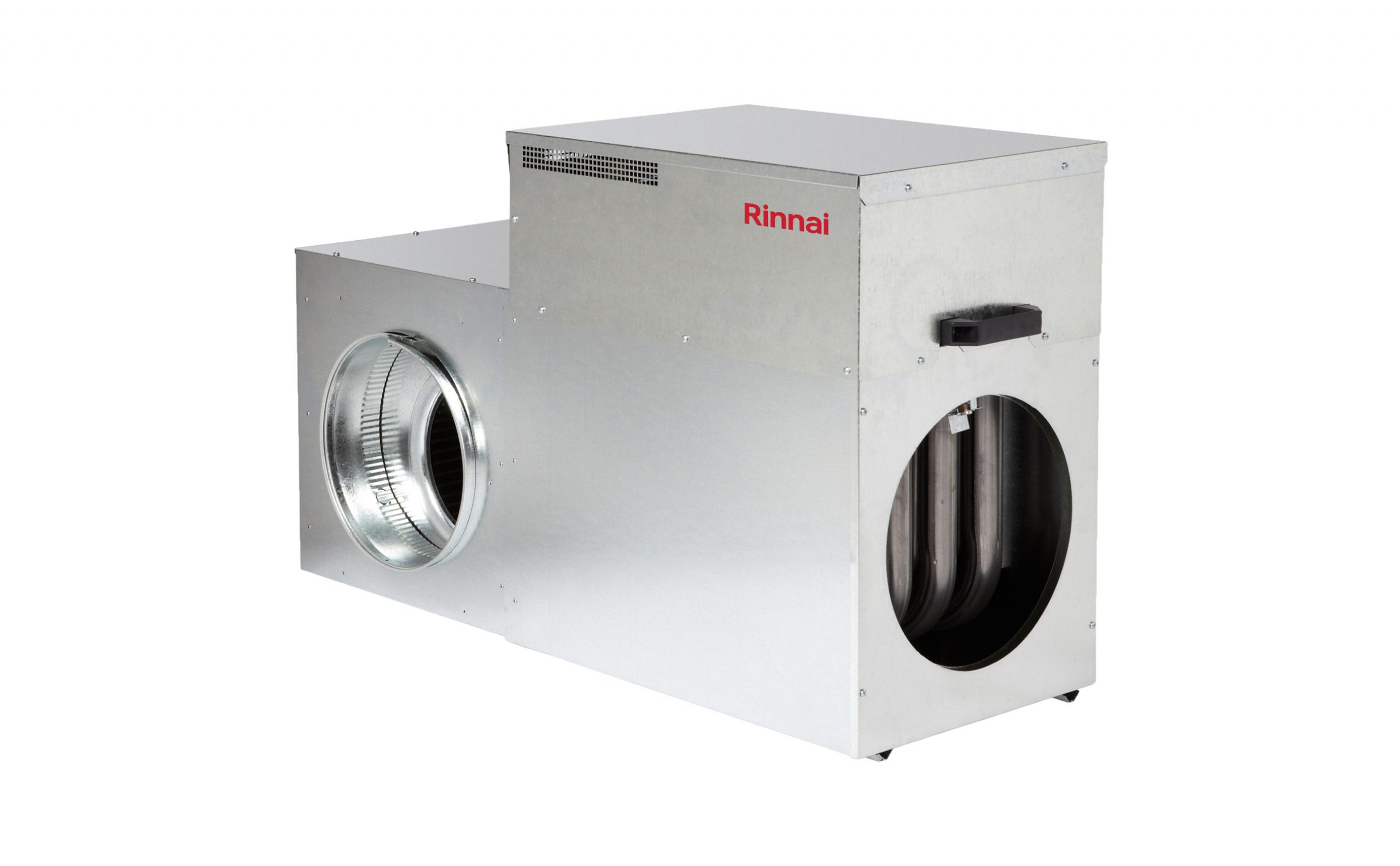

Rinnai SP6 6 Star Angle Right Internal In roof 1 scaledPreview
-

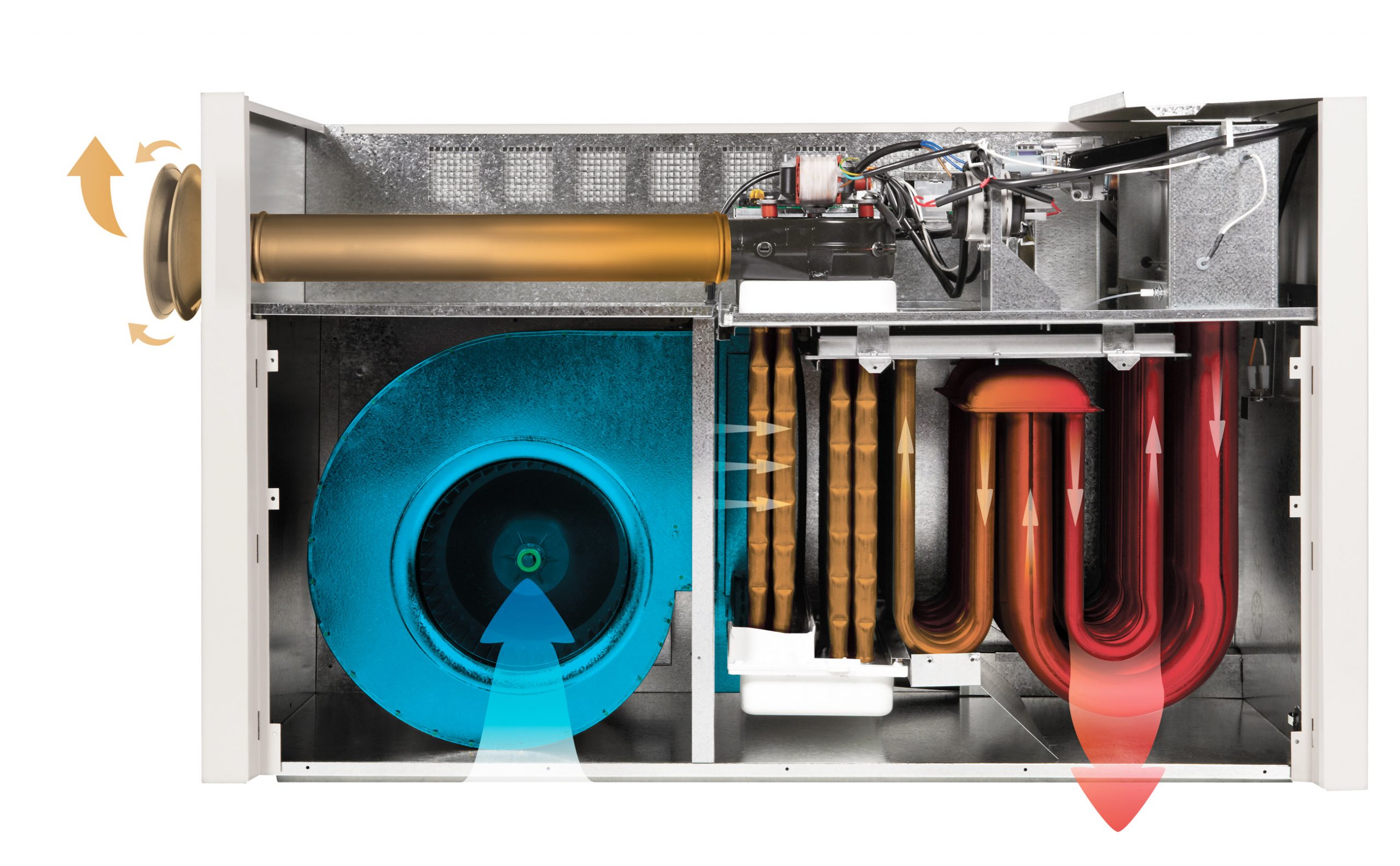

Rinnai SP6 6 Star Angle Right External Outdoors Internals Case OpenPreview
-

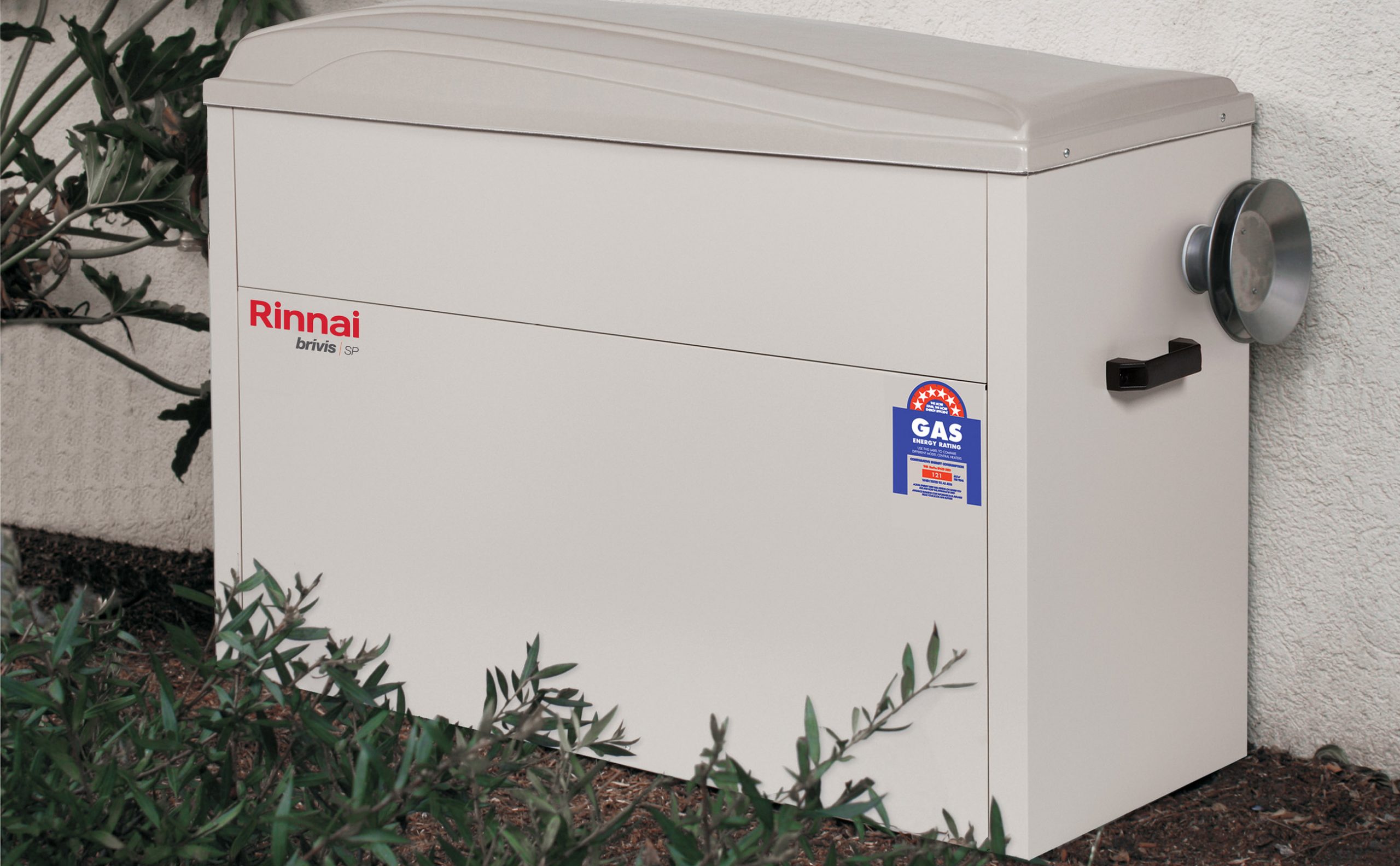

Rinnai SP6 6 Star Right Angle External Garden imagePreview
-

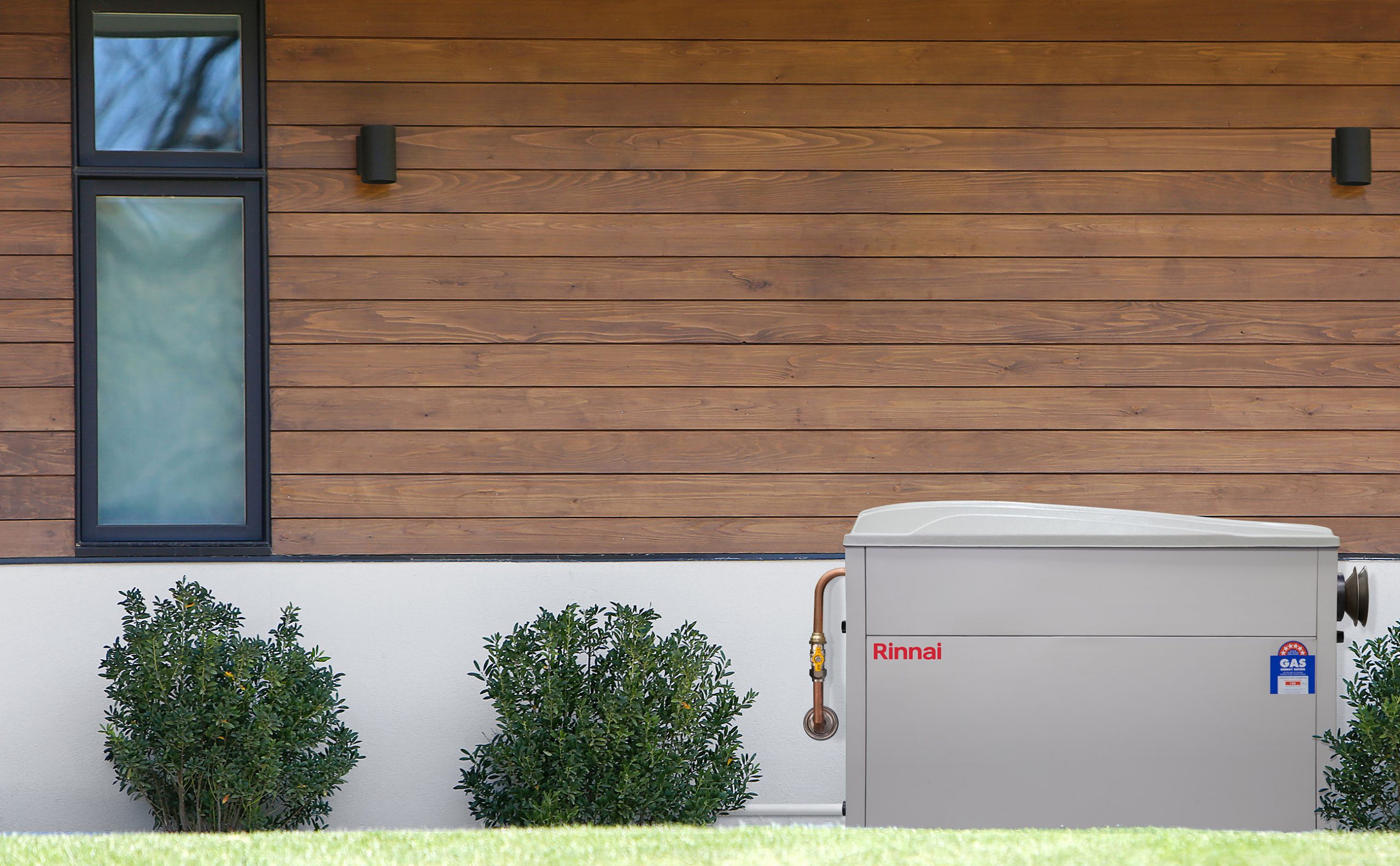

Rinnai SP66 Star Side on External Outdoors GardenPreview
-
