HD210 internal
HD210 internal
This ground breaking technology is the first of its kind to be used in water heating in Australia. The unique design incorporates two innovative Stainless Steel heat exchangers to achieve the maximum heating output from every mega joule of gas, resulting in an outstanding thermal efficiency of 97%. In addition it employs revolutionary surface burner technology – An Australian first!
This unit is a room sealed appliance using a co-axial flue design with an impressive maximum flue run of up to 42 metres. Offering class leading installation flexibility.
For internal applications only.
Locate Your Nearest Store
Suitable for caravan parks, high usage amenities and factories
97% thermal efficiency – Internal model
Revolutionary surface burner technology – An Australian first
Suitable applications include:
- Caravan Parks
- Butchers
- Laundromats with domestic style top loader machines
- Childcare centres
- Small amenity blocks
- Factories
- High temperature washdown
The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact Rinnai to confirm product information
|
Dimensions (mm) : Height |
670 |
|
Dimensions (mm) : Width |
470 |
|
Dimensions (mm) : Depth |
291 |
|
Colours |
Silver |
|
Factory Default Temperature (Celsius) |
50 or 75 |
|
Water Pressure (kPa) : Minimum |
300 |
|
Water Pressure (kPa) : Maximum |
1000 |
|
Gas Rate Min/Max : NG |
15.9/209 |
|
Gas Rate Min/Max : LPG |
15.9/209 |
|
Min operating water flow rate : L/min |
2.4 |
|
Thermal efficiency rating (%) |
97 |
|
Connection Sizes Gas/Hot/Cold/Condensate (mm) |
20/20/20/15 |
|
Inbuilt controller |
Yes |
|
Dimensions (mm) : Height Inc Brackets |
722 |
|
Dimensions (mm) : Hot Water Outlet (From Wall) |
157 |
|
Dimensions (mm) : Hot Water Outlet (Left from Centre) |
130 |
|
Dimensions (mm) : Cold Water Inlet (From Wall) |
91 |
|
Dimensions (mm) : Cold Water Inlet (Right from Centre) |
10 |
|
Dimensions (mm) : Gas Connection (From Wall) |
72 |
|
Dimensions (mm) : Gas Connection (Right from Centre) |
142 |
|
Dimensions (mm) : Gas Connection Length (From Base) |
45 |
|
Dimensions (mm) : Cold Connection Length (From Base) |
54 |
|
Dimensions (mm) : Hot Connection Length (From Base) |
41 |
|
Dimensions (mm) : Condensate Length (From Base) |
24 |
|
Weight (Kg) |
29 |
Photography
-

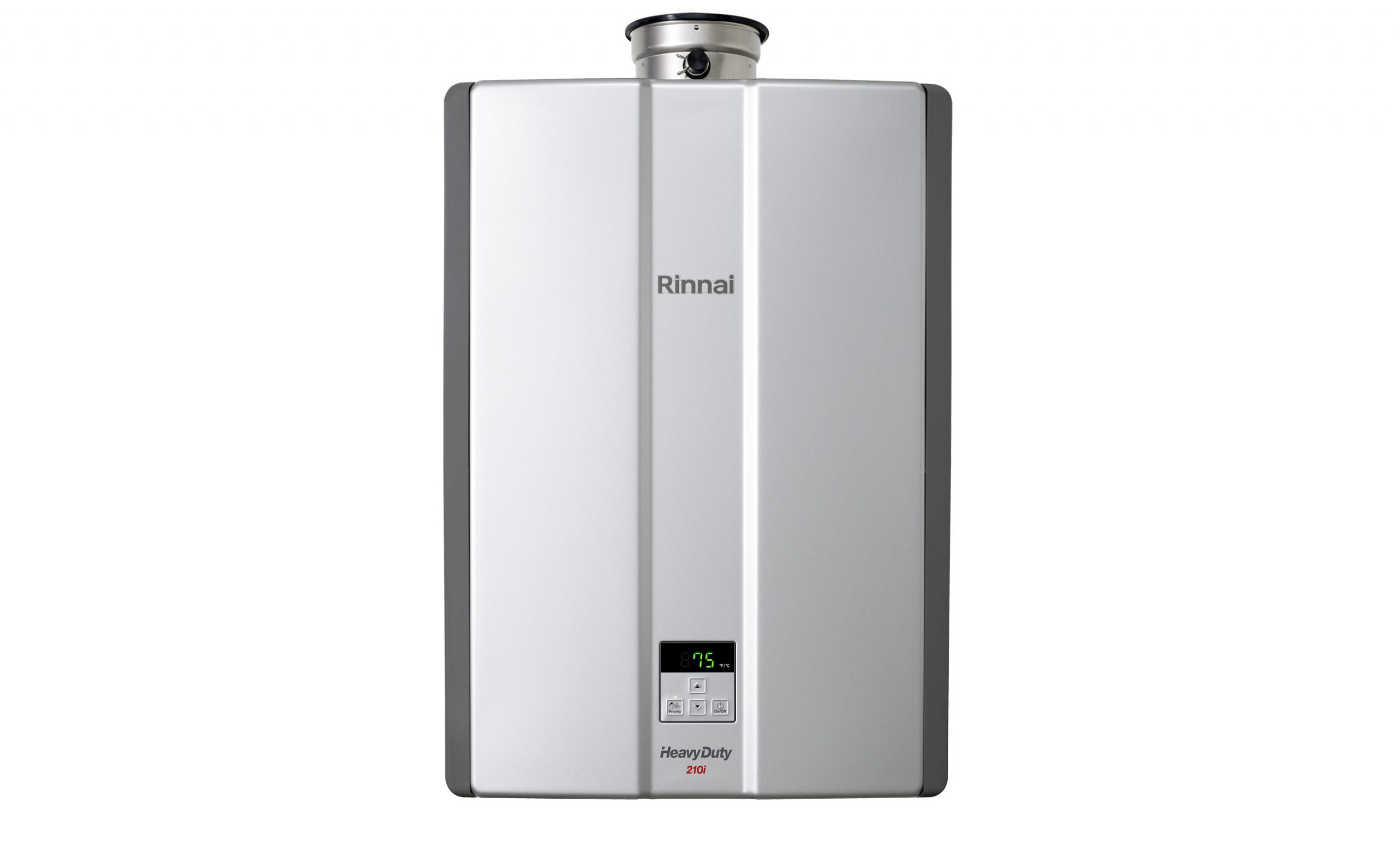

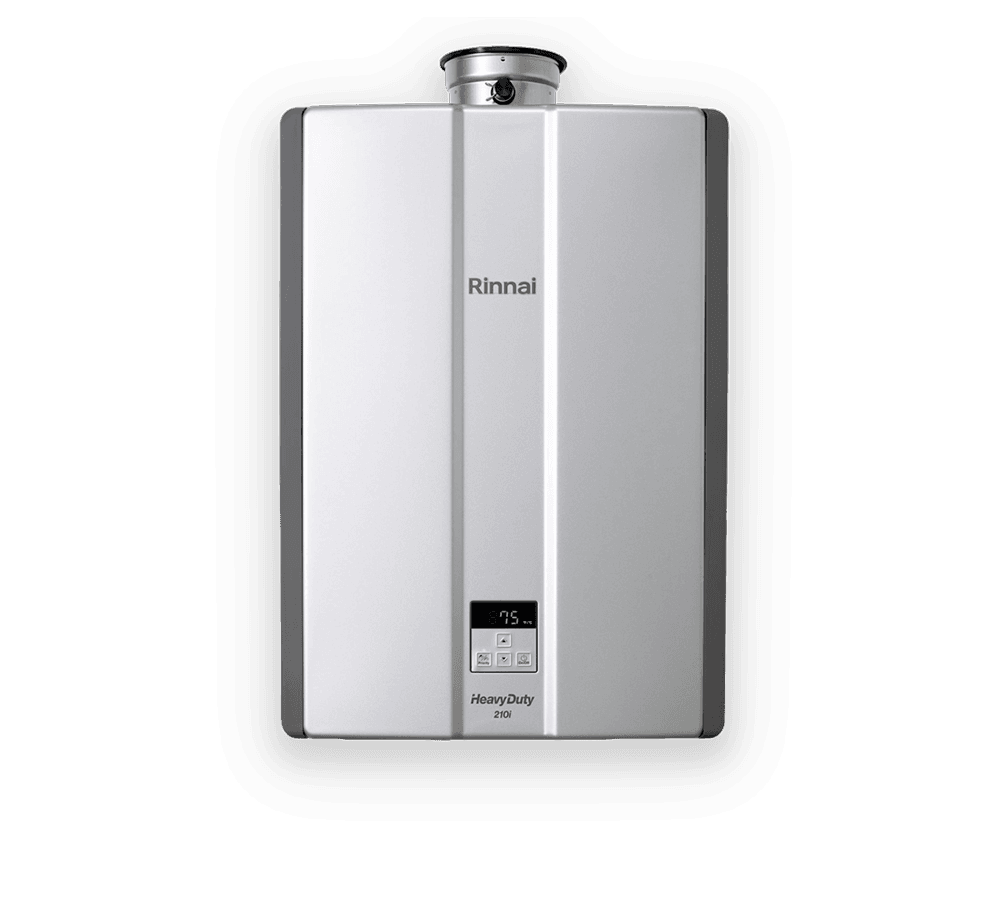

Rinnai HD210i (Internal) Heavy Duty Continuous Flow CF Commercial FrontPreview
-

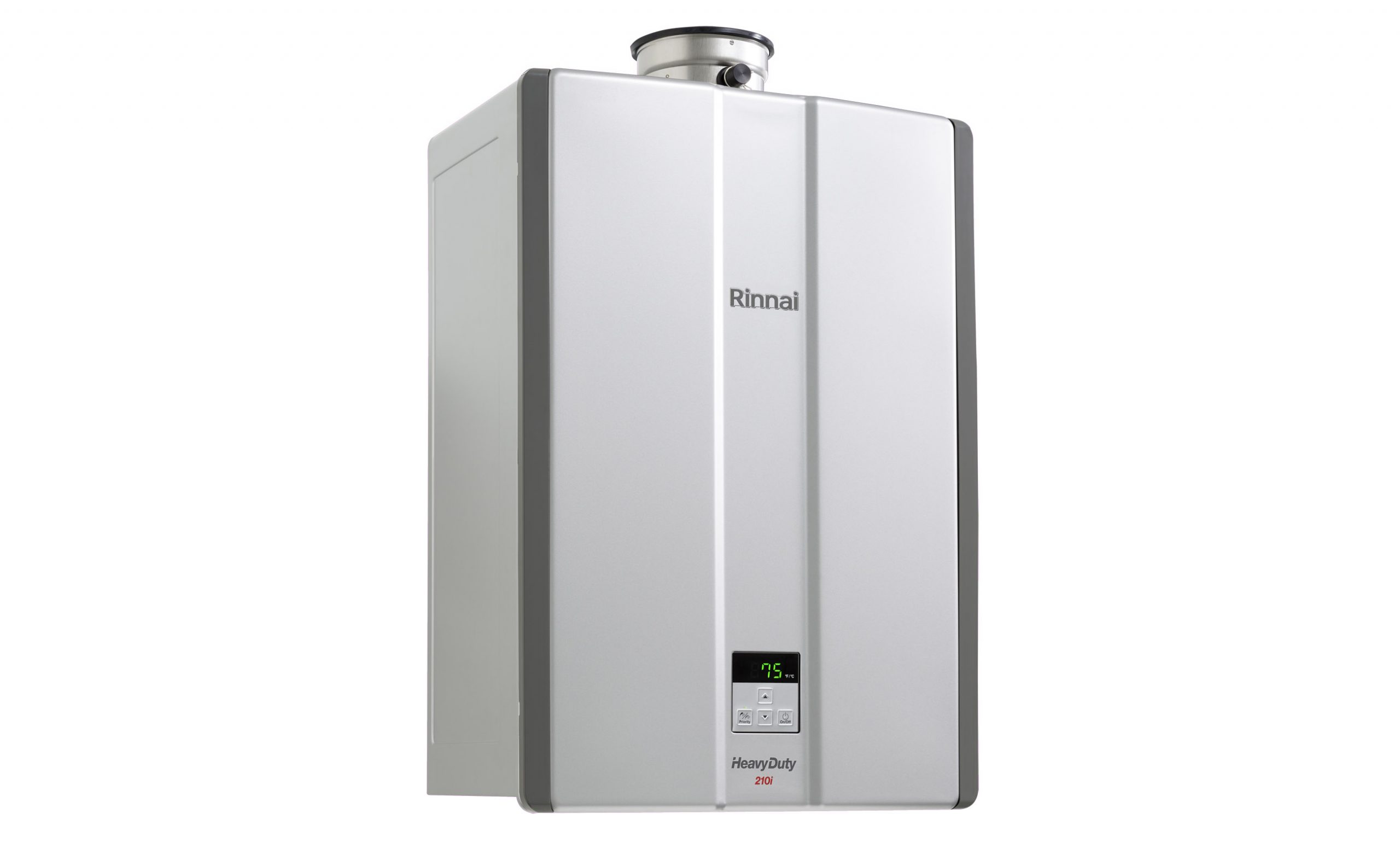

Rinnai HD210i (Internal) Heavy Duty Continuous Flow CF Commercial Angle LeftPreview
-

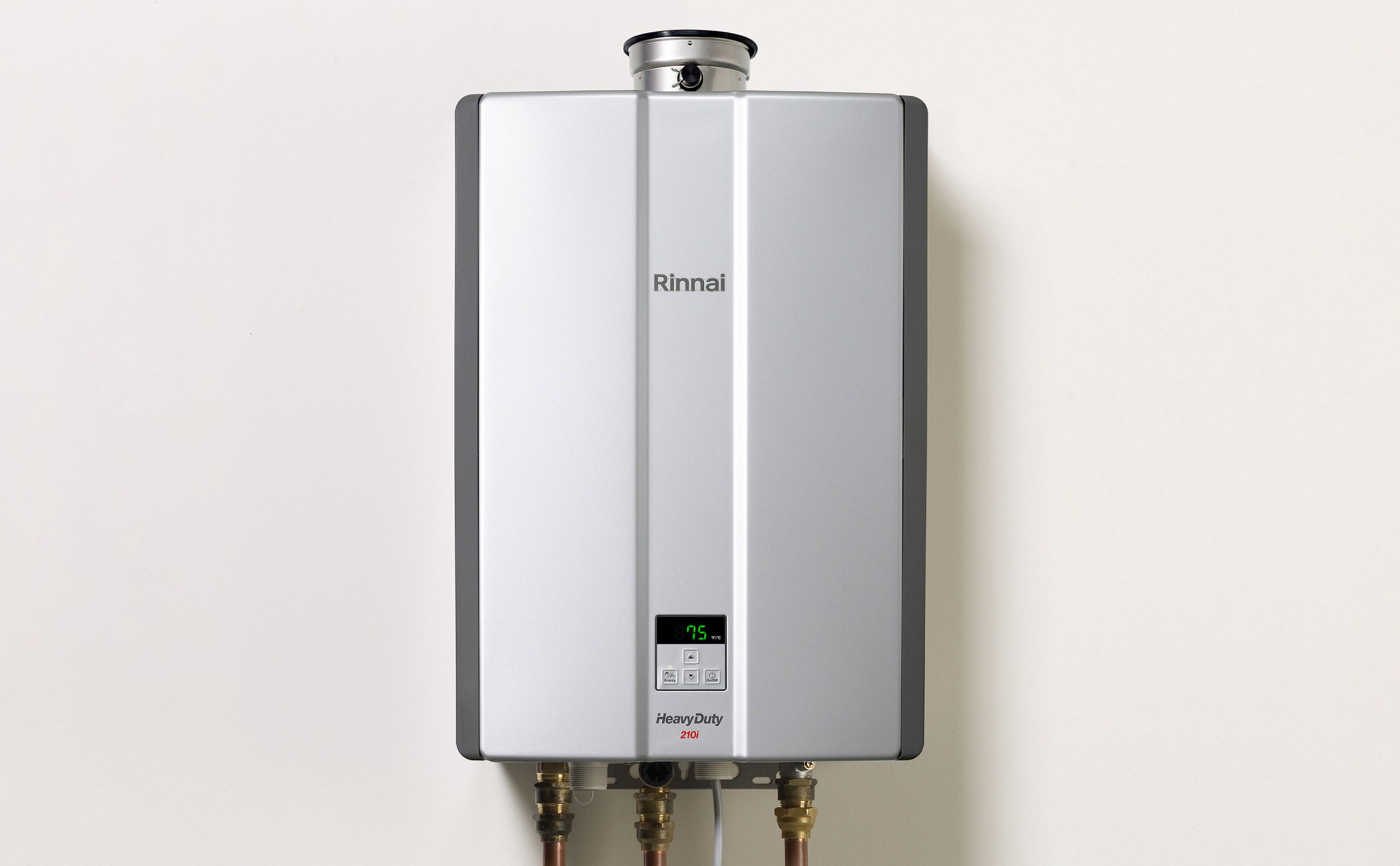

Rinnai HD210i (Internal) Heavy Duty Continuous Flow CF Commercial Insitu Lifestyle Installed Plaster Wall insidePreview
-

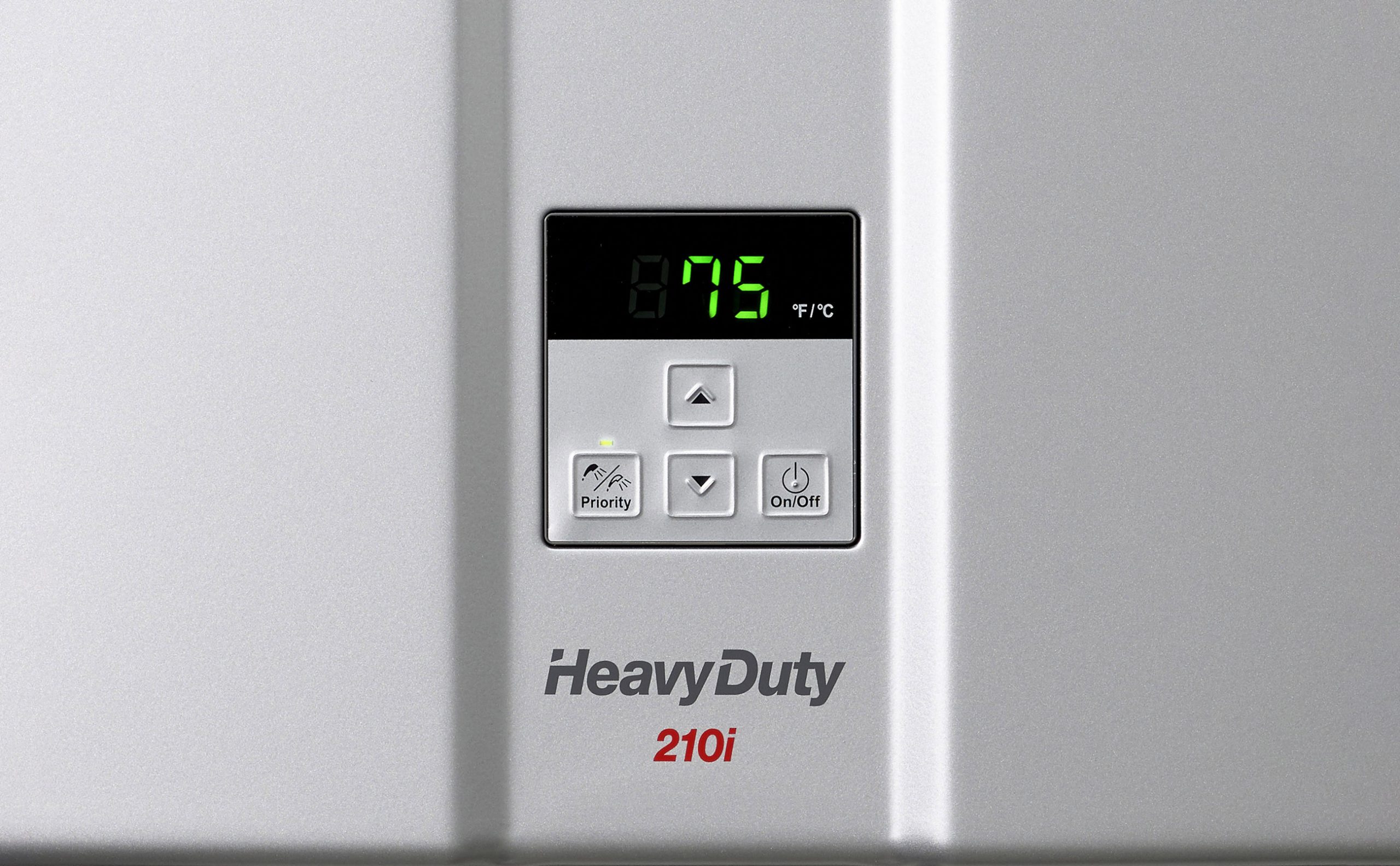

Rinnai HD210i (Internal) Heavy Duty Continuous Flow CF Commercial Control Panel LCD Temperature DisplayPreview
-

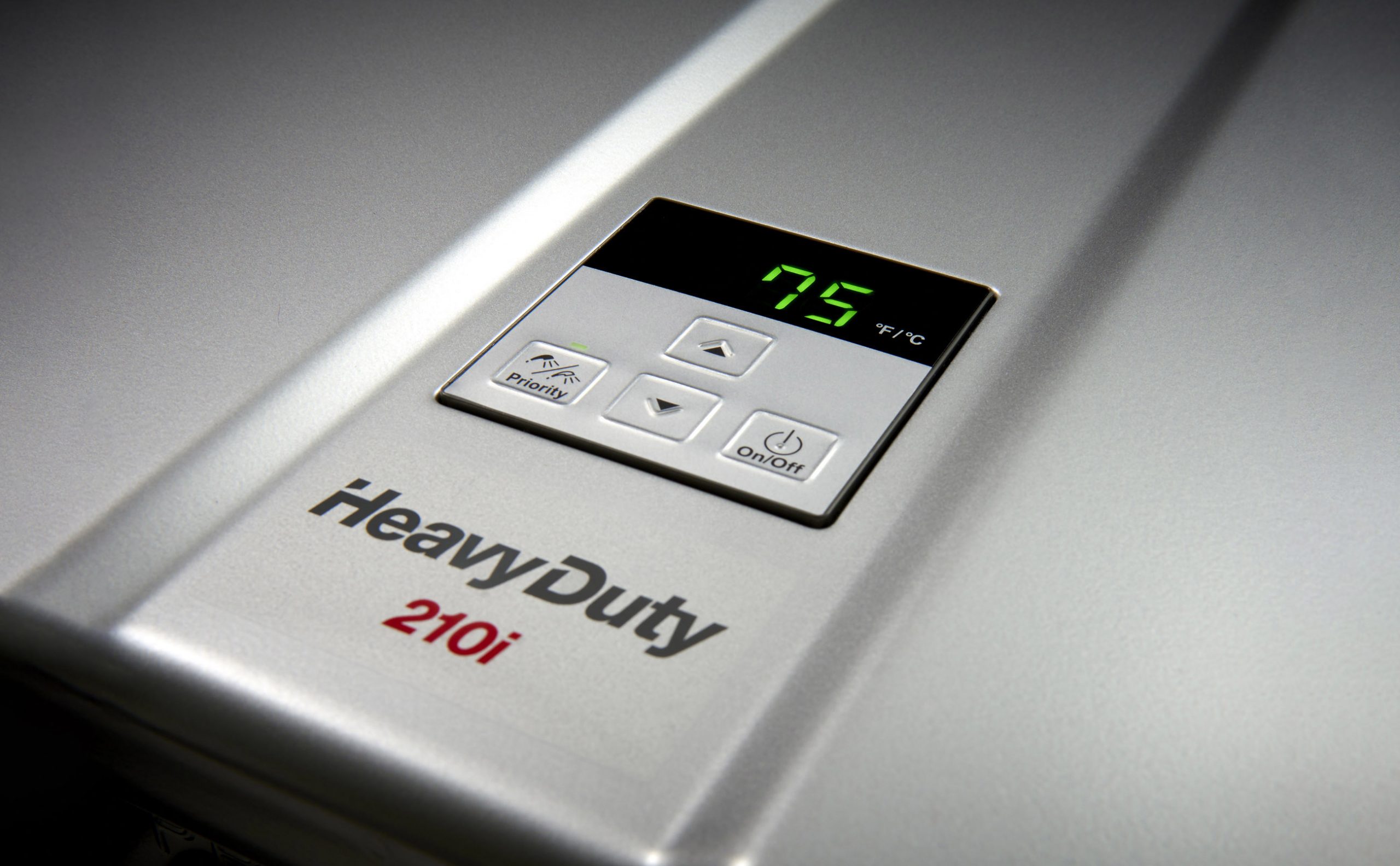

Rinnai HD210i (Internal) Heavy Duty Continuous Flow CF Commercial Control Panel LCD Temperature Display Perspective ViewPreview
-

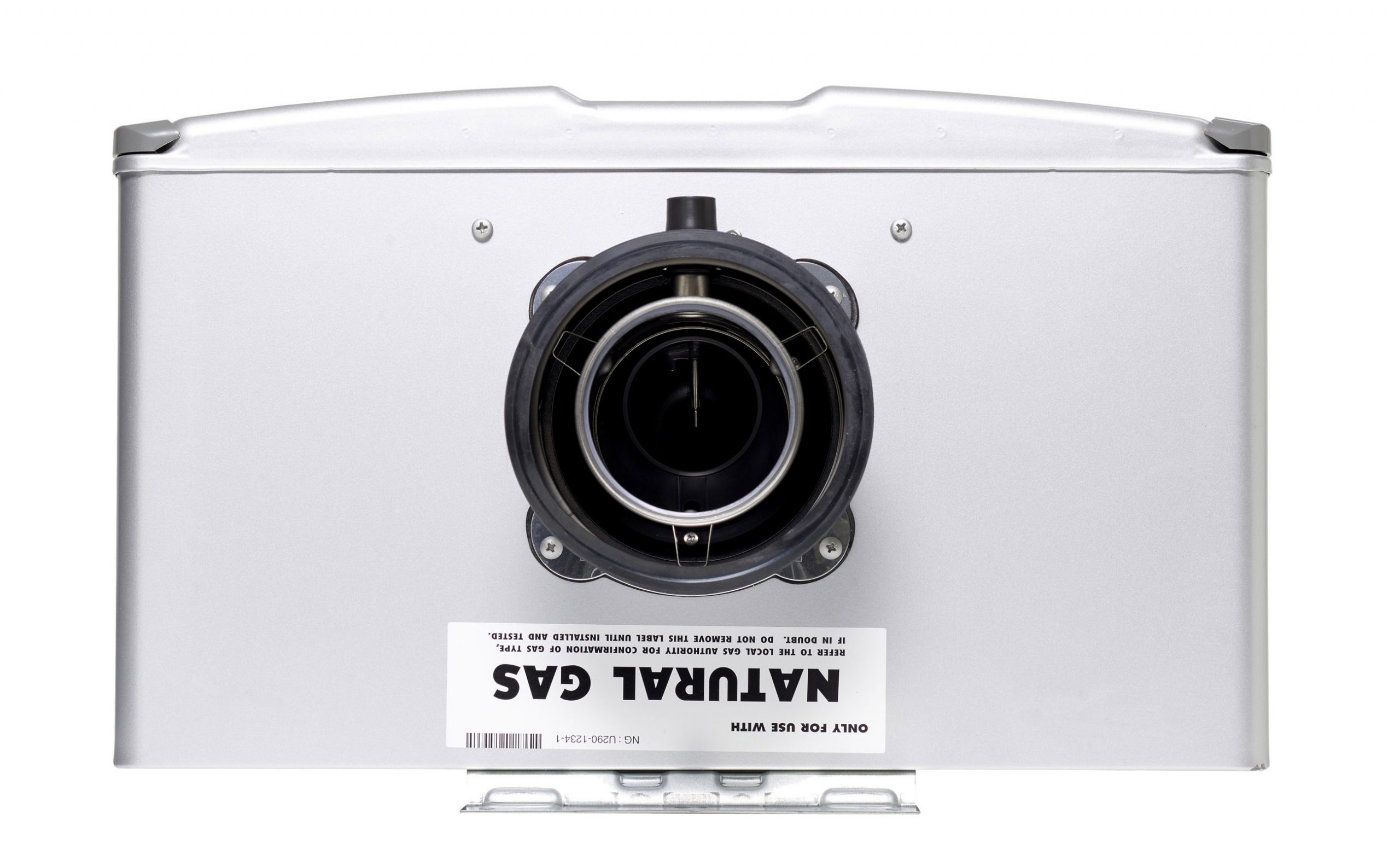

Rinnai HD210i (Internal) Heavy Duty Continuous Flow CF Commercial Top view flue terminal connectionPreview
-

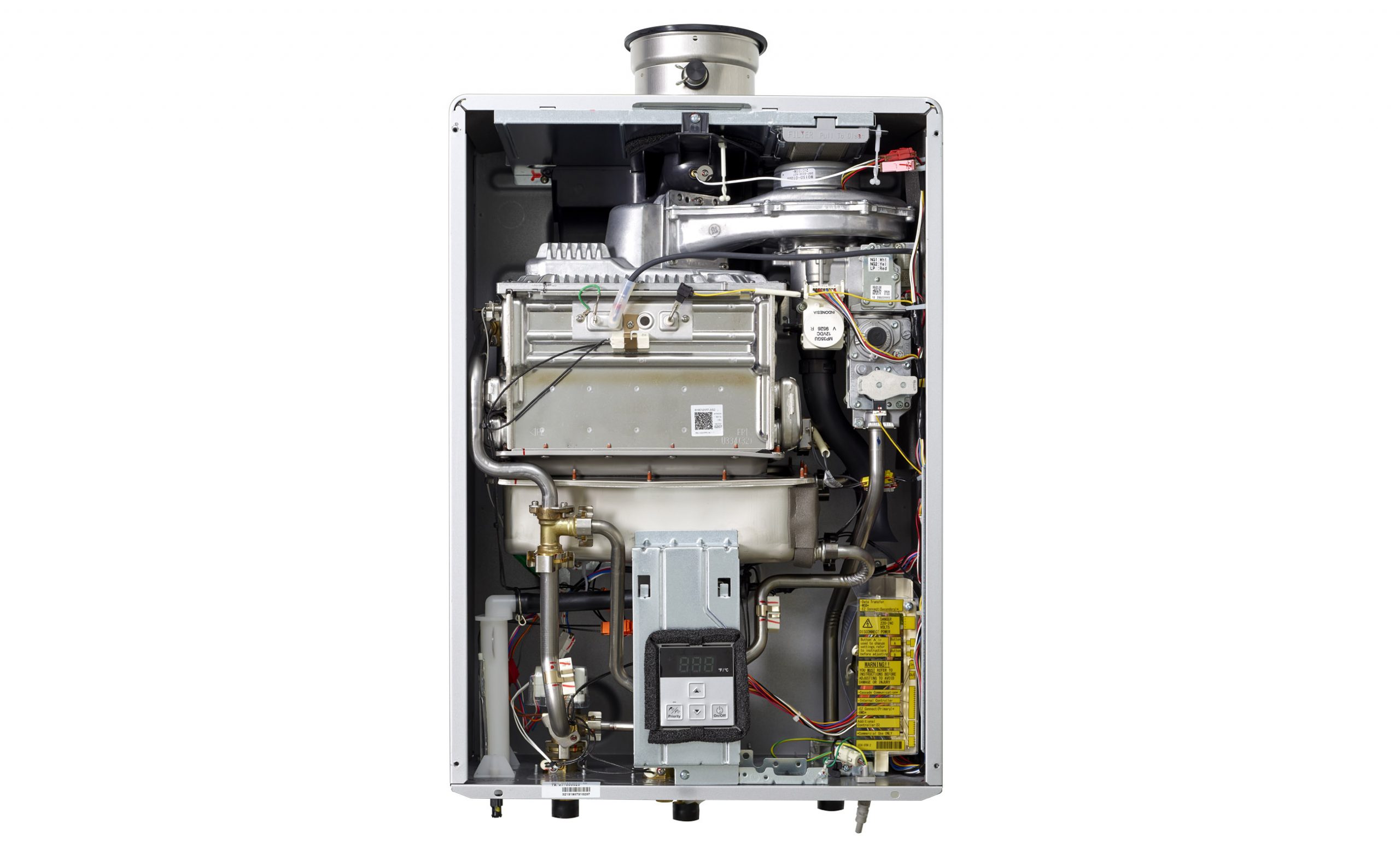

Rinnai HD210i (Internal) Heavy Duty Continuous Flow CF Commercial Front Case Open InternalsPreview
-

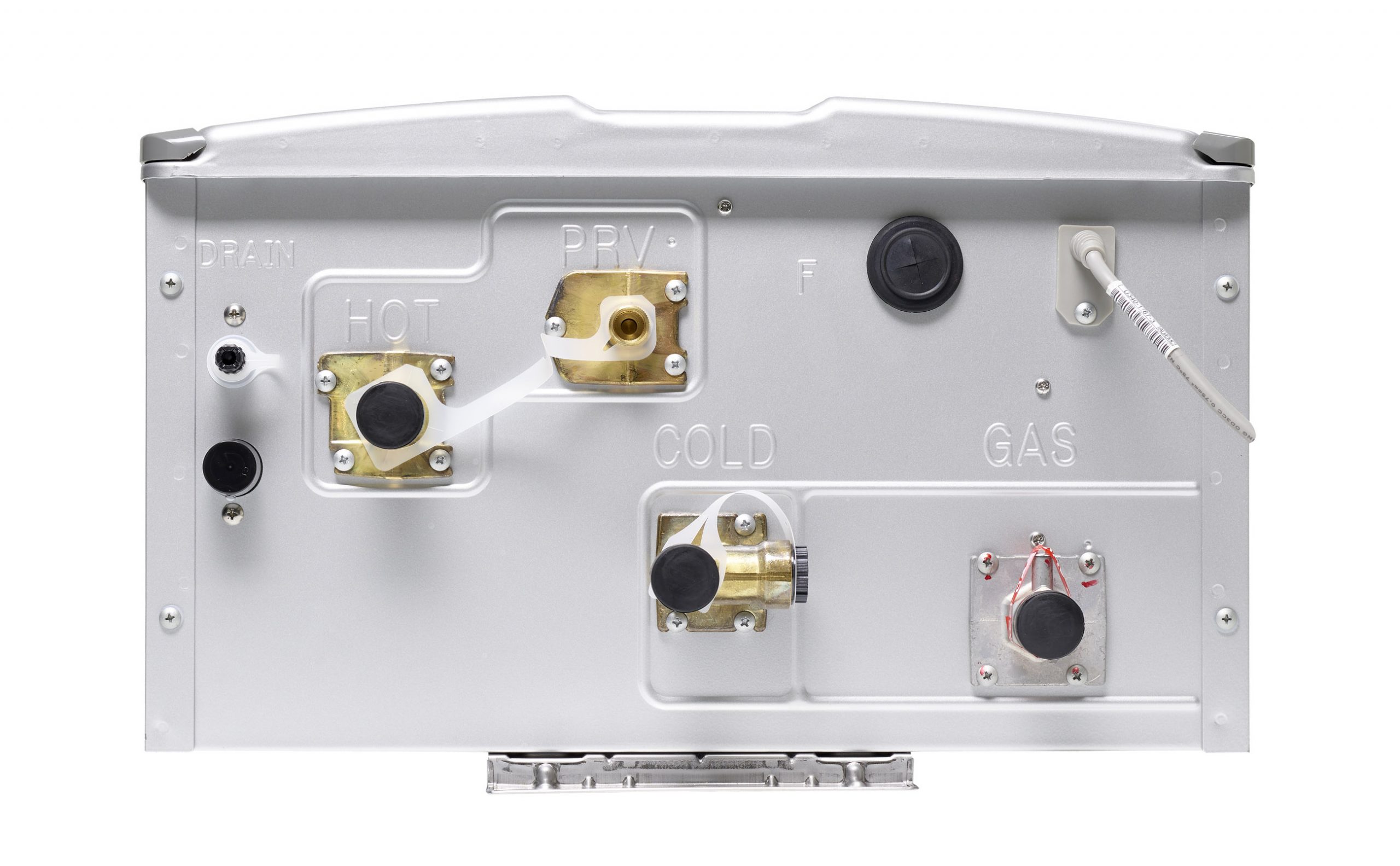

Rinnai HD210i (Internal) Heavy Duty Continuous Flow CF Commercial Bottom viewPreview
-

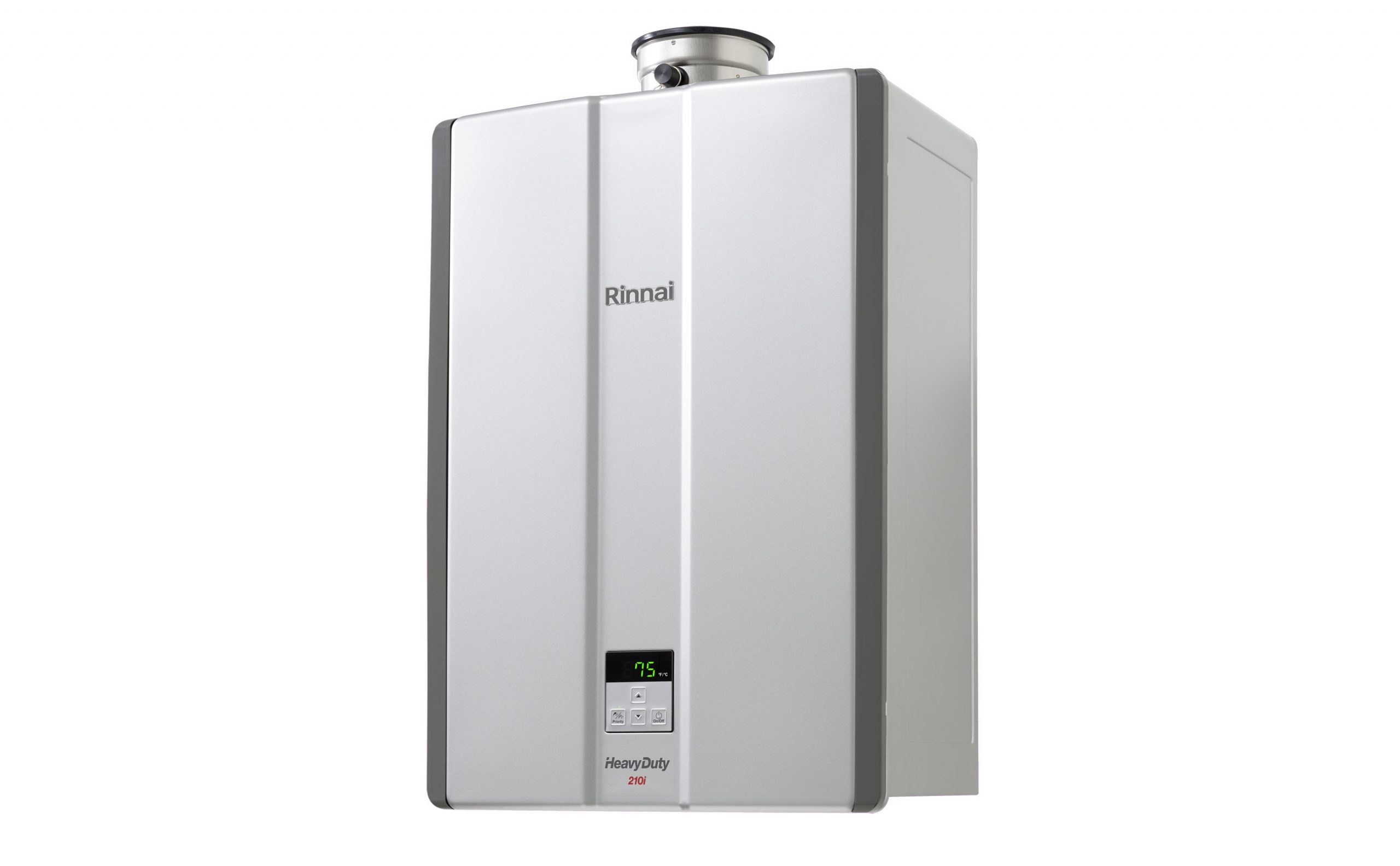

Rinnai HD210i (Internal) Heavy Duty Continuous Flow CF Commercial Angle RightPreview
