Flat Plate Systems
Flat Plate Systems
Flat Plate Solar Systems consist of a ground mounted storage tank that is installed separately to the collectors mounted on the roof. A small pump circulates the water from the cylinder through to the collectors to absorb the maximum available solar energy.
Locate Your Nearest Store
Cost effective Vitreous Enamel tanks
Highly efficient aluminium fin solar collectors
Collectors and tank can be installed separately
- A range of storage capacities from 175 litres to 315 litres
- Available with electric boost or continuous flow gas boost
- Minimal impact on the aesthetics of your roofline
- No need to reinforce the roof structure
- Enduro collectors use aluminium fin solar absorber to maximise efficiency
- Innovative control system using a stepless speed controlled pump
- A sacrificial anode is provided in the tank for added protection
- Suitable for high wind areas to classification region D in accordance with AS/NZS1170.2:2011 using our additional cyclone frame
- Warranty is 10 years on the tanks and 7 years on the collectors
The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact Rinnai to confirm product information.
| Description | System | Storage capacity | Booster | Boost Capacity | Collectors | Average Usage (People) | High Usage (People) |
| Split Systems Gas Boosted | 1 | 175L | S20 | 20L/min | 1 | 5 | 3 |
| 1-XL | 175L | S20 | 20L/min | 1 | 5 | 3 | |
| 2 | 175L | S26 | 26L/min | 1 | 5 | 3 | |
| 2-XL | 175L | S26 | 26L/min | 1 | 5 | 3 | |
| 3 | 215L | S20 | 20L/min | 2 | 6 | 4 | |
| 4 | 215L | S26 | 26L/min | 2 | 6 | 4 | |
| 5-XL | 270L | S26 | 26L/min | 2 | 7 | 5 | |
| 15 | 320L | S26 | 26L/min | 2 | 8 | 6 | |
| Split Systems Electric Boosted | 6M | 250L | 3.6kW | 150L | 2 | 5 | 3 |
| 6B | 250L | 3.6kW | 250L | 2 | 6 | 5 | |
| 7M | 315L | 3.6kW | 170L | 2 | 6 | 4 | |
| 7B | 315L | 3.6kW | 315L | 2 | 7 | 6 | |
| 8M | 315L | 3.6kW | 170L | 3 | 6 | 4 | |
| 8B | 315L | 3.6kW | 315L | 3 | 7 | 6 |
Prestige stainless steel solar tanks are not available in all regions of Australia, please contact your local Rinnai Solar Specialist for more information.
Photography
-

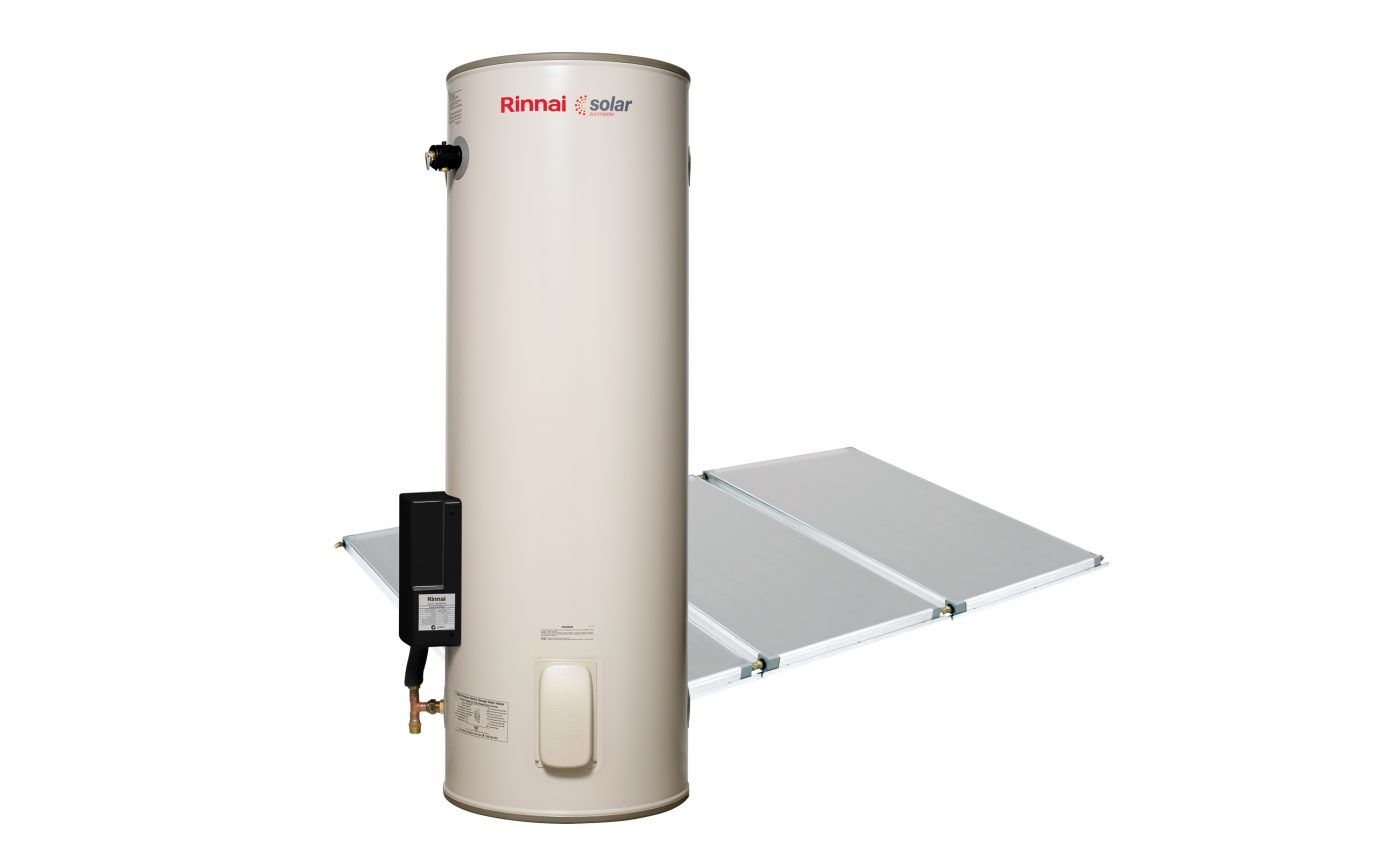

Rinnai Sunmaster Electric Boosted Solar Hot Water Storage Tank - Triple Flat Plate Collector EnduroPreview
