Geoflo Hybrid 22
Geoflo Hybrid 22
Environmentally responsible climate control down under
Harnessing the abundant renewable energy right under your feet
Everyday the ground absorbs approximately half of the sun’s energy that reaches earth and stores it at a steady temperature at specific depths. Rinnai’s Geoflo Hybrid ²² Geothermal system harnesses this renewable energy source from the ground to reliably deliver an efficient energy boost to your home’s heating and cooling needs.
In addition to heating and cooling, the Geoflo Hybrid ²² technology can divert surplus energy to supplement the generation of hot water for your home.
Renewable clean energy
Lower energy costs
Flexible design
Sustainable heating & cooling
5 year warranty
Renewable clean energy
Geothermal energy is readily accessible and can assist in reducing electricity consumption in comparison to a traditional ducted reverse cycle inverter air conditioning system. Geothermal system heating and cooling performance is less impacted by adverse ambient conditions.
Flexible design
Geothermal heat pump systems are designed with the user in mind. They are designed to be installed in either new or retrofit applications.
Very durable
With high durability and reliability geothermal systems are becoming the way of the future for many homeowners who want lower energy costs and environmental solutions that deliver greener outcomes.
| System Overview | |||
| Model Name | Geoflo Hybrid 22 | ||
| Power Supply | V – Ph – Hz | 220- 240V, 1 phase, 50Hz | |
| Cooling | Rated Capacity | kW | 19.7* |
| Rated Input Power | kW | 4.8 | |
| EER | W/W | 4.1 | |
| Heating | Rated Capacity | kW | 18.0** |
| Rated Input Power | kW | 4.6 | |
| COP | W/W | 3.9 | |
| Supplementary Hot Water Capacity | kW | 4.0*** | |
| Refrigerant | R410A | ||
| Refrigerant Pipe – Suction | 19mm (3/4”) | ||
| Refrigerant Pipe – Liquid | 9.5mm (3/8”) | ||
| Hot Water Outlet and Return Connections | ISO 7.1 RP 3/4” | ||
| Condensing Unit | |||
| Model Name | DONSGHW18Z3 | ||
| Compressor Type | Inverter Twin Rotary | ||
| Oil Type | Polyester (POE) | ||
| Current Breaker | Amps | 40 | |
| Maximum Input Current | 32 | ||
| Dimensions (W x D x H) | mm | 1257 x 508 x 1395 | |
| Weight (Net) | kg | 206 | |
| Operating Temperature Limits | °C | -15 – 50 | |
| Sound Power Level | dBA | 67 | |
| Indoor Fan Coil Unit | |||
| Model Name | DINLR17Z72 | ||
| Current Breaker | Amps | 10 | |
| Rated Current | Amps | 3 | |
| Rated Input Power | W | 600 | |
| Dimensions (W x D x H) | mm | 1400 x 858 x 440 | |
| Weight (Net) | kg | 75 | |
| Air Flow @ 150 Pa | L/s | 1100 | |
| Maximum External Static Pressure | Pa | 200 | |
| Return Air Duct Connection (L x W) | mm | 1188 x 385 | |
| Supply Air Duct Connection (L x W) | mm | 1188 x 385 | |
| Rated Moisture Removal | L/h | 3.3 |
* Rated Cooling Capacity (890 L/s Air Flow @ 60 Pa ESP – AS / NZS 3823.2
** Rated Heating Capacity (902 L/s Air Flow @ 60 Pa ESP – AS / NZS 3823.2
*** Rated Energy Output under standard conditions and supplementary heating (Ambient 20°C , Temperature rise from 20°C to 45°C)- AS / NZS 5125.1
With our policy of continuous improvement, we reserve the right to change, or discontinue at any time, specifications or designs without notice.
Note: All images contained within this brochure are for illustrative purposes only, the colours and finishes of the products featured are as close to the respective product range as photographic lighting and printing processes allow.
Photography
-

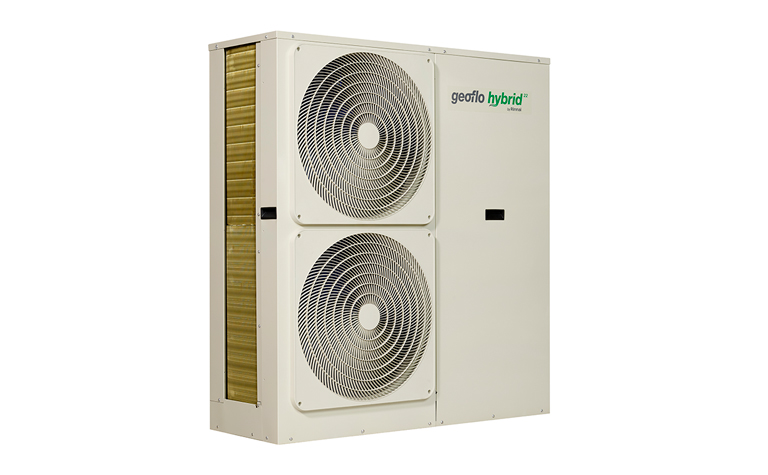

RIN240221_06_768x475Preview
-

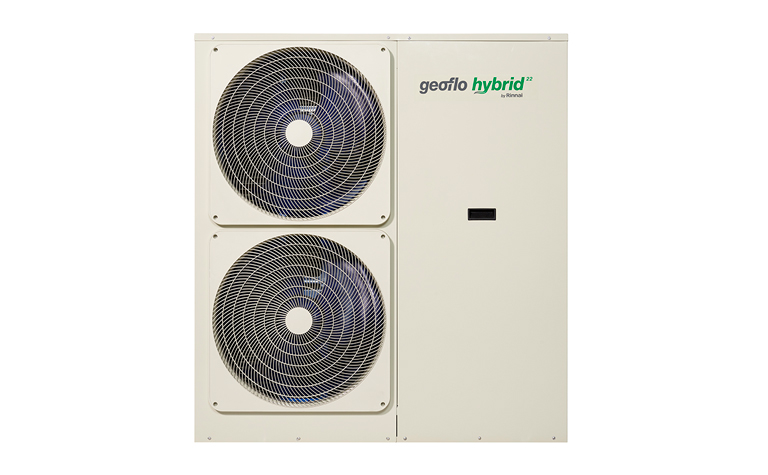

RIN240221_02_768x475Preview
-

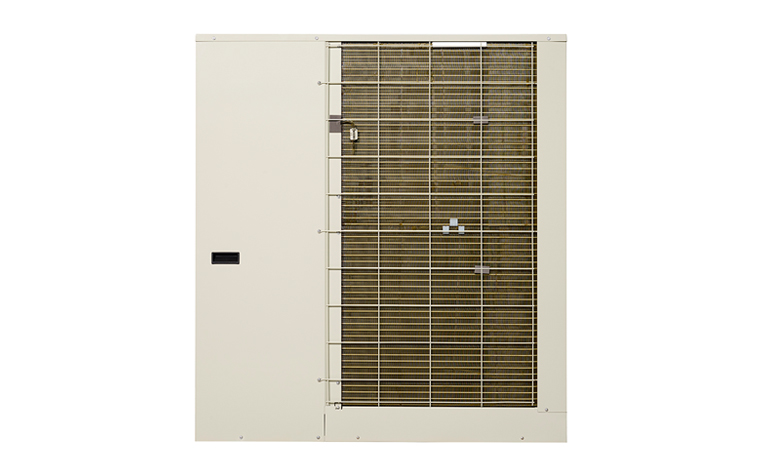

RIN240221_03_768x475Preview
-

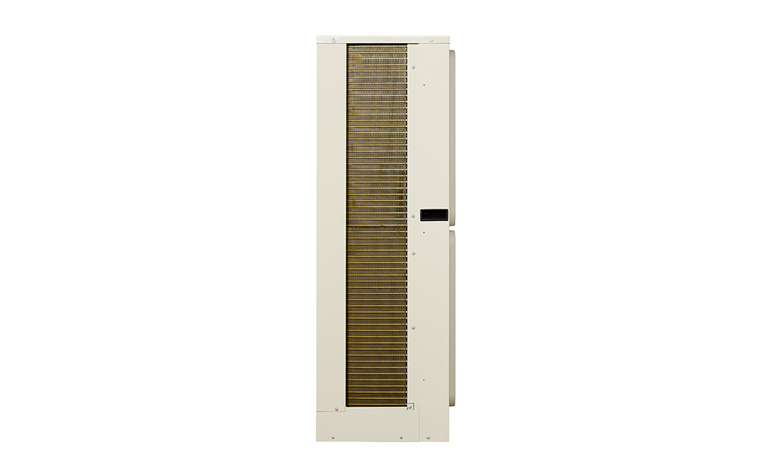

RIN240221_04_768x475Preview
-

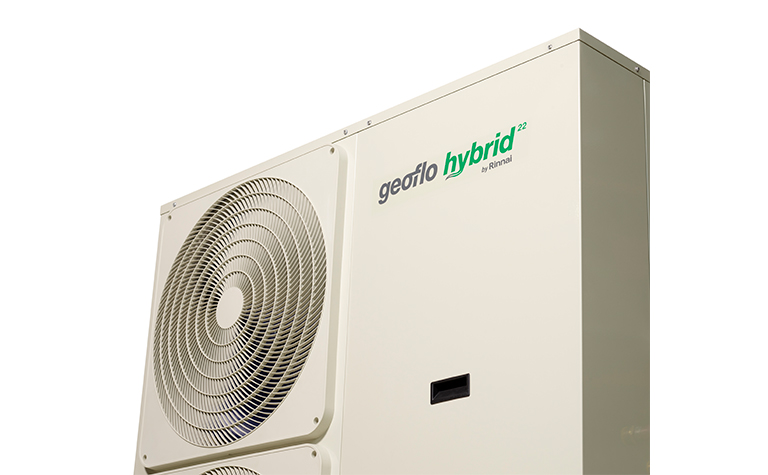

RIN240221_15_768x475Preview
-

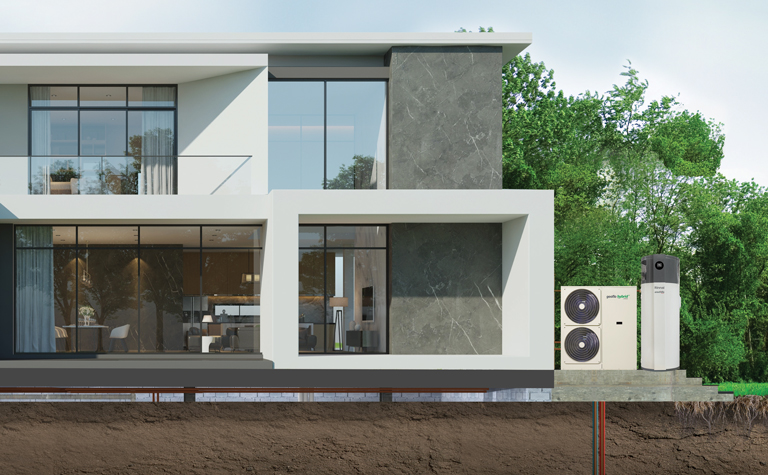

Geoflo_HousePreview
-

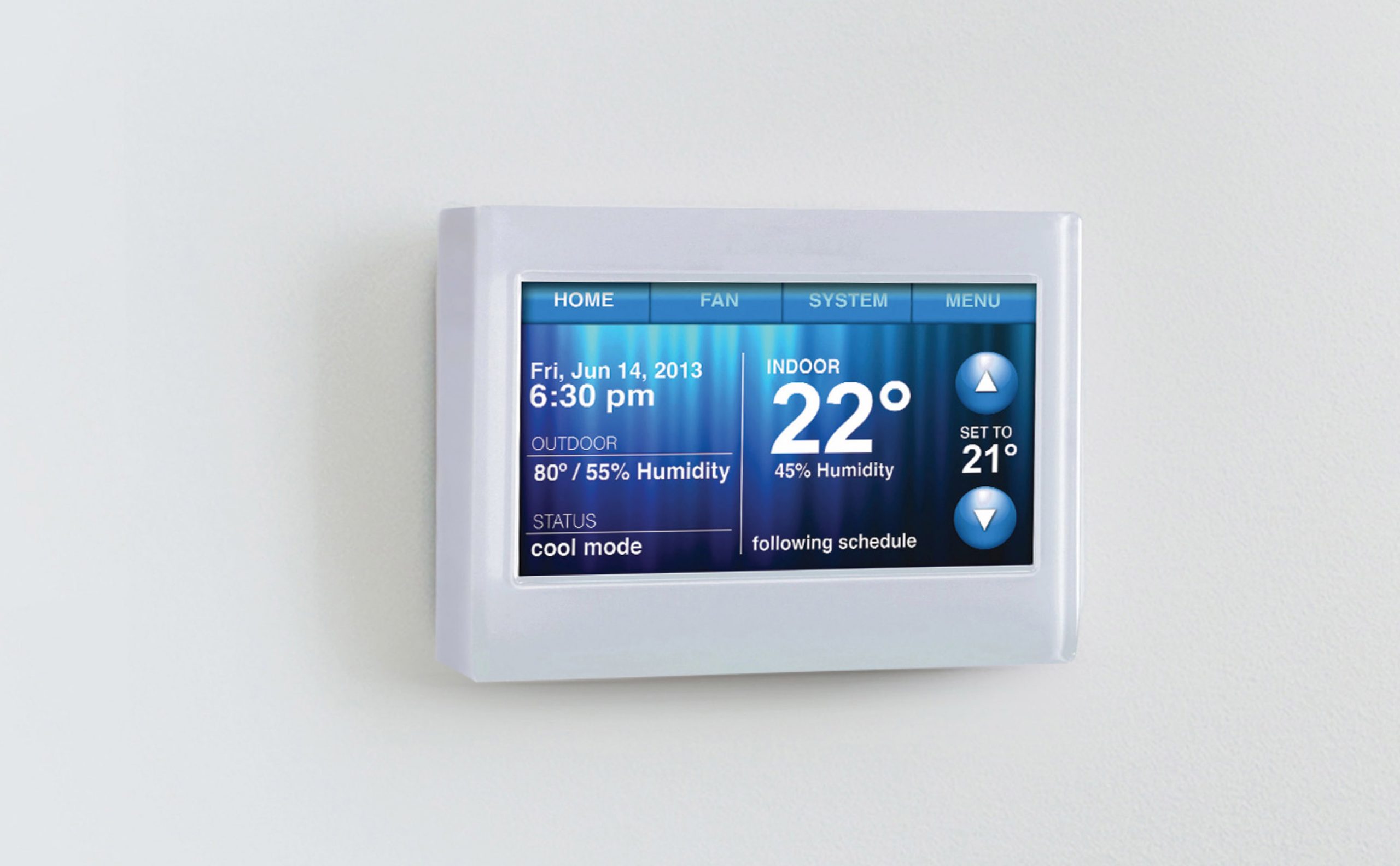

Rinnai-Geoflo-Hybrid-Geothermal-Heat-Pump-Touch-Screen-Controller-on-wall-scaledPreview
-

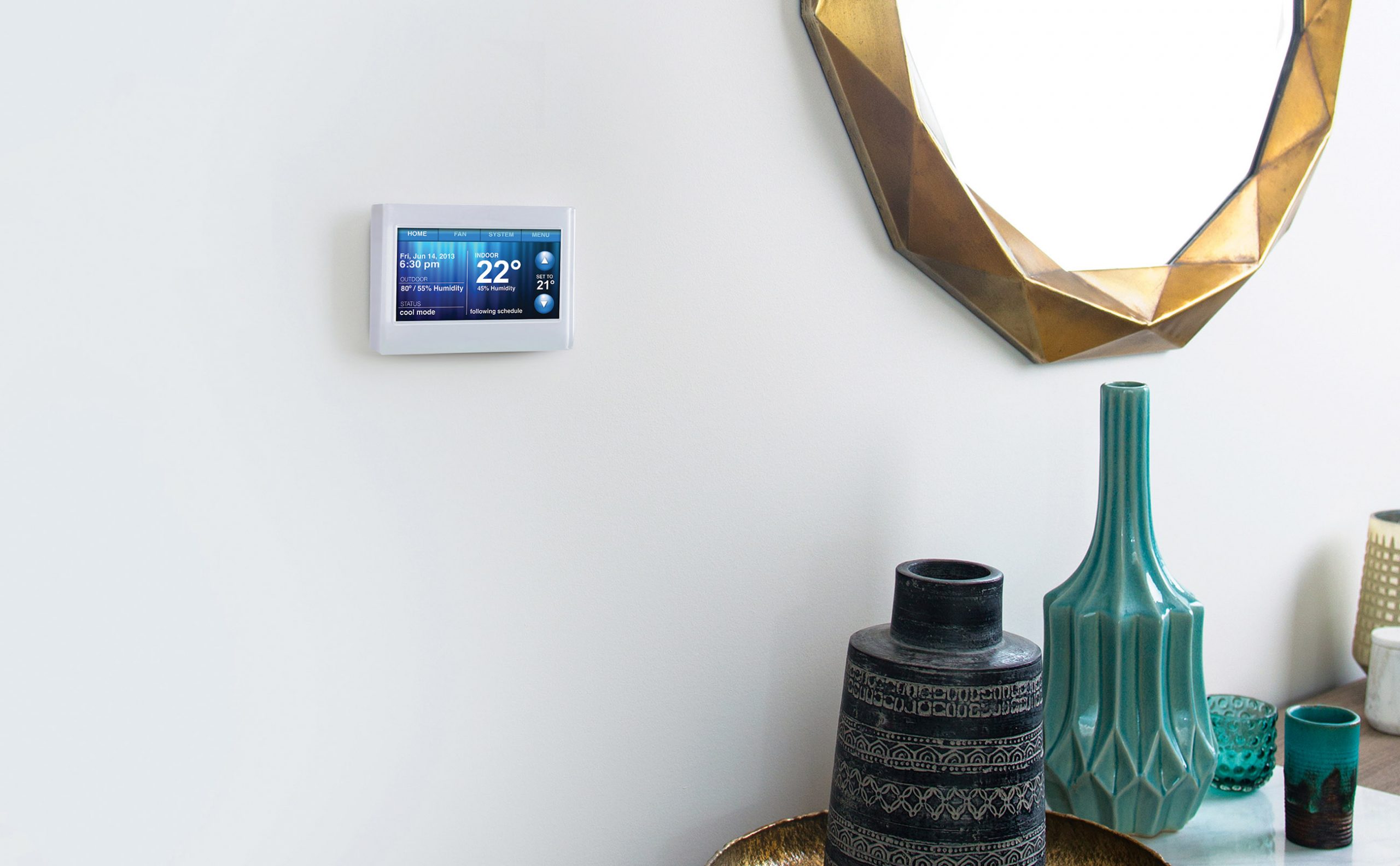

Rinnai-Geoflo-Hybrid-Geothermal-Heat-Pump-Touch-Screen-Controller-on-wall-2-scaledPreview
-

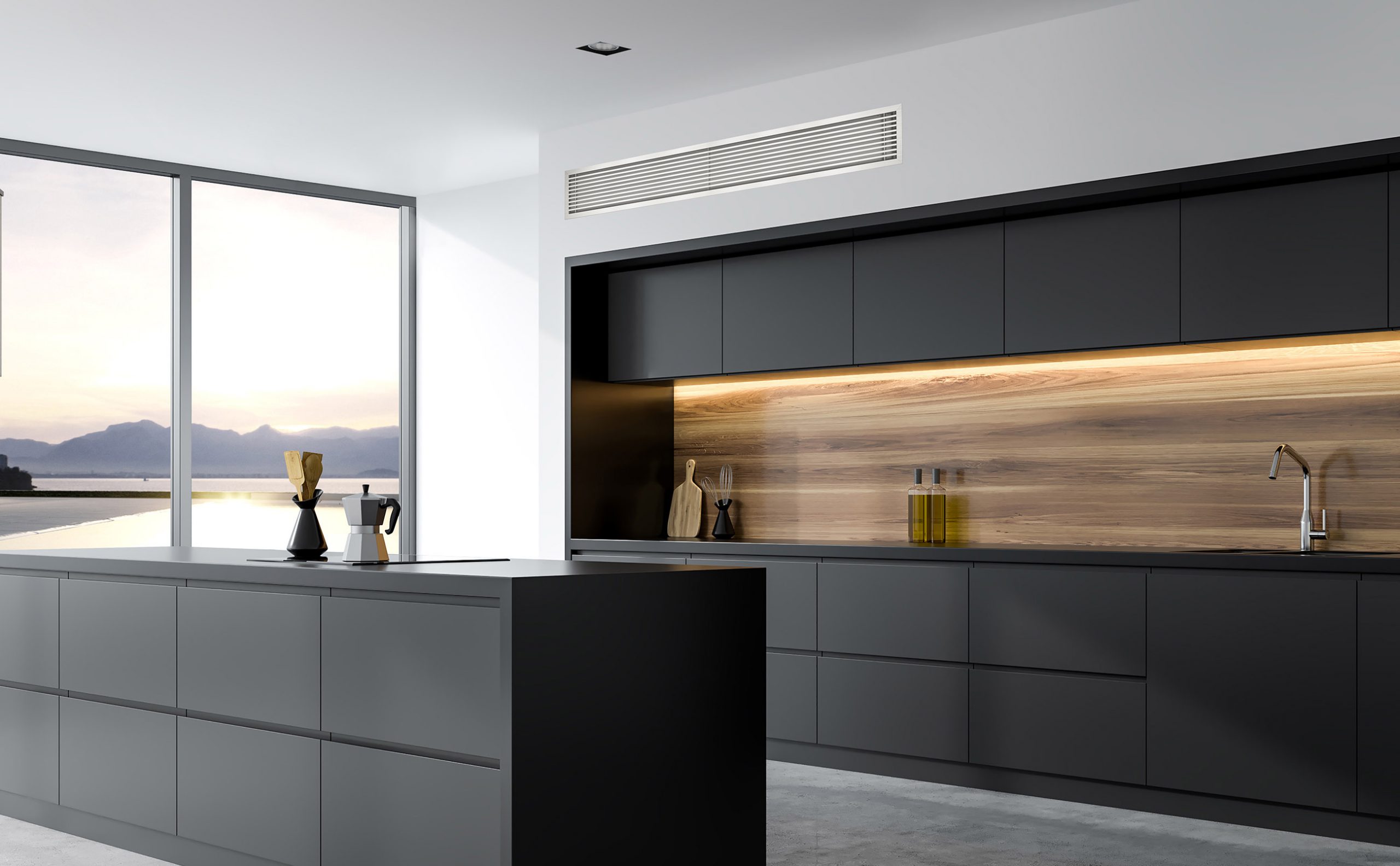

Rinnai-Geoflo-Hybrid-Geothermal-Heat-Pump-HVAC-Ventilation-ducting-scaledPreview
