Prestige Close Coupled systems
Prestige Close Coupled systems
A solar close coupled system is where the storage tank and the solar collectors are coupled together and installed on the roof.
Locate Your Nearest Store
Stainless Steel tanks
Excelsior collectors with European selective surface technology
No moving parts
- 180 or 330 litre capacity storage
- Electric boost or dedicated continuous flow gas boost configurations
- Using thermo-syphoning means there are no moving parts
- Excelsior collectors offering European technology absorb the maximum available solar energy
- Tanks manufactured in Australia
- No sacrificial anode is required which saves on maintenance costs
- Suitable for high wind areas to classification region D in accordance with AS/NZS1170.2:2011 using our additional cyclone frame
- Warranty is 10 years on the tanks and 7 years on the collectors
| System | Storage capacity | Booster | Collectors | Boost Capacity | Average Usage (People) | High Usage (People) | |
| Close Coupled Electric | I | 180L | 2.4 kW | 1 | 100 | 3 | 2 |
| J | 330L | 2.4 kW | 2 | 180 | 6 | 4 | |
| K | 330L | 3.6 kW | 2 | 180 | 6 | 4 | |
| Close Coupled Gas | L | 180L | S20 | 1 | 20L/min | 3 | 2 |
| M | 330L | S26 | 2 | 26L/min | 6 | 4 |
Prestige stainless steel solar tanks are not available in all regions of Australia, please contact your local Rinnai Solar Specialist for more information.
Photography
-

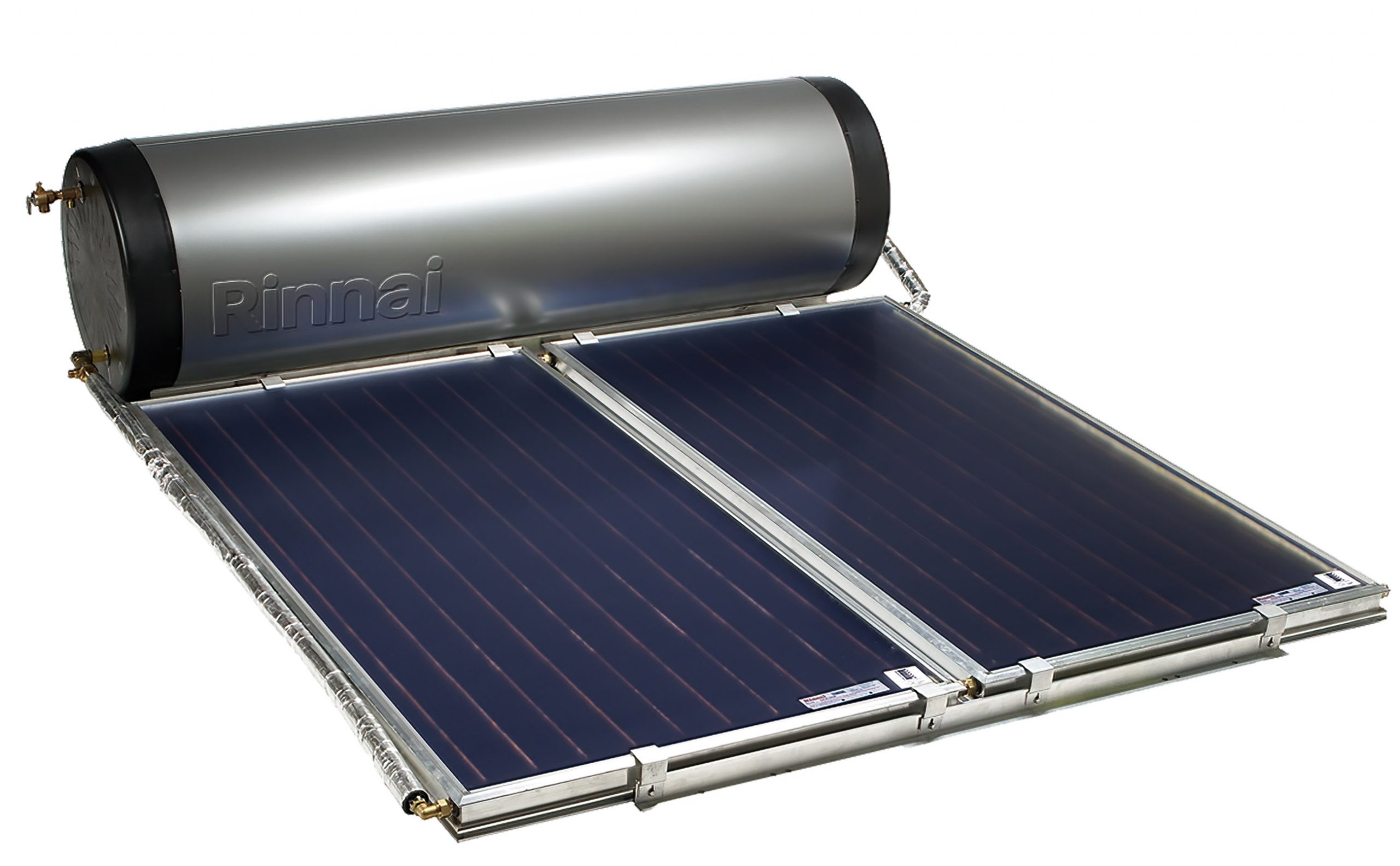

Rinnai Close Coupled Electric Double Flat Plate CollectorPreview
-
Rinnai Close Coupled Electric Double Flat Plate CollectorPreview
-
Rinnai Close Coupled Electric Single Flat Plate Collector - S26 Gas CF BoosterPreview
-

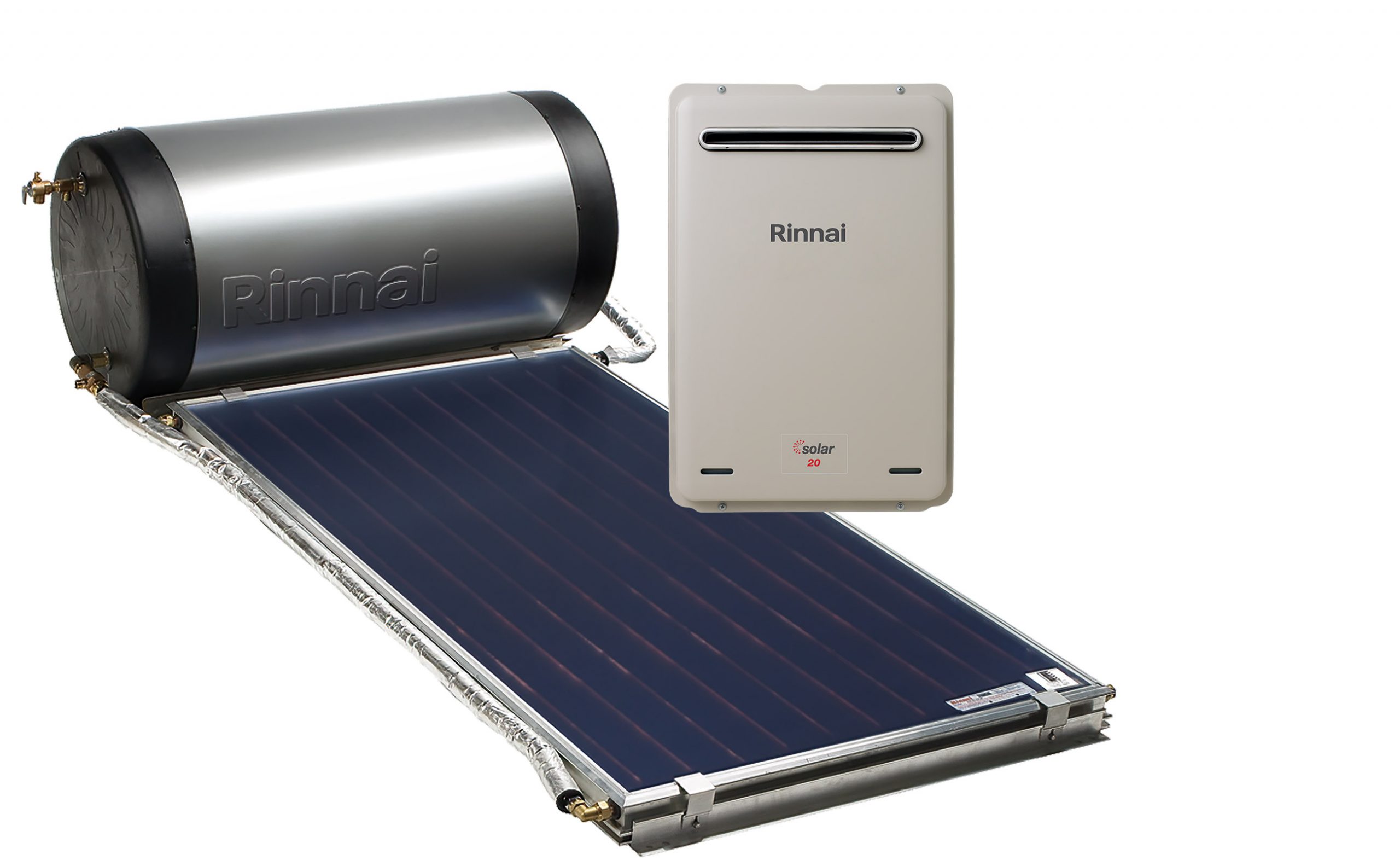

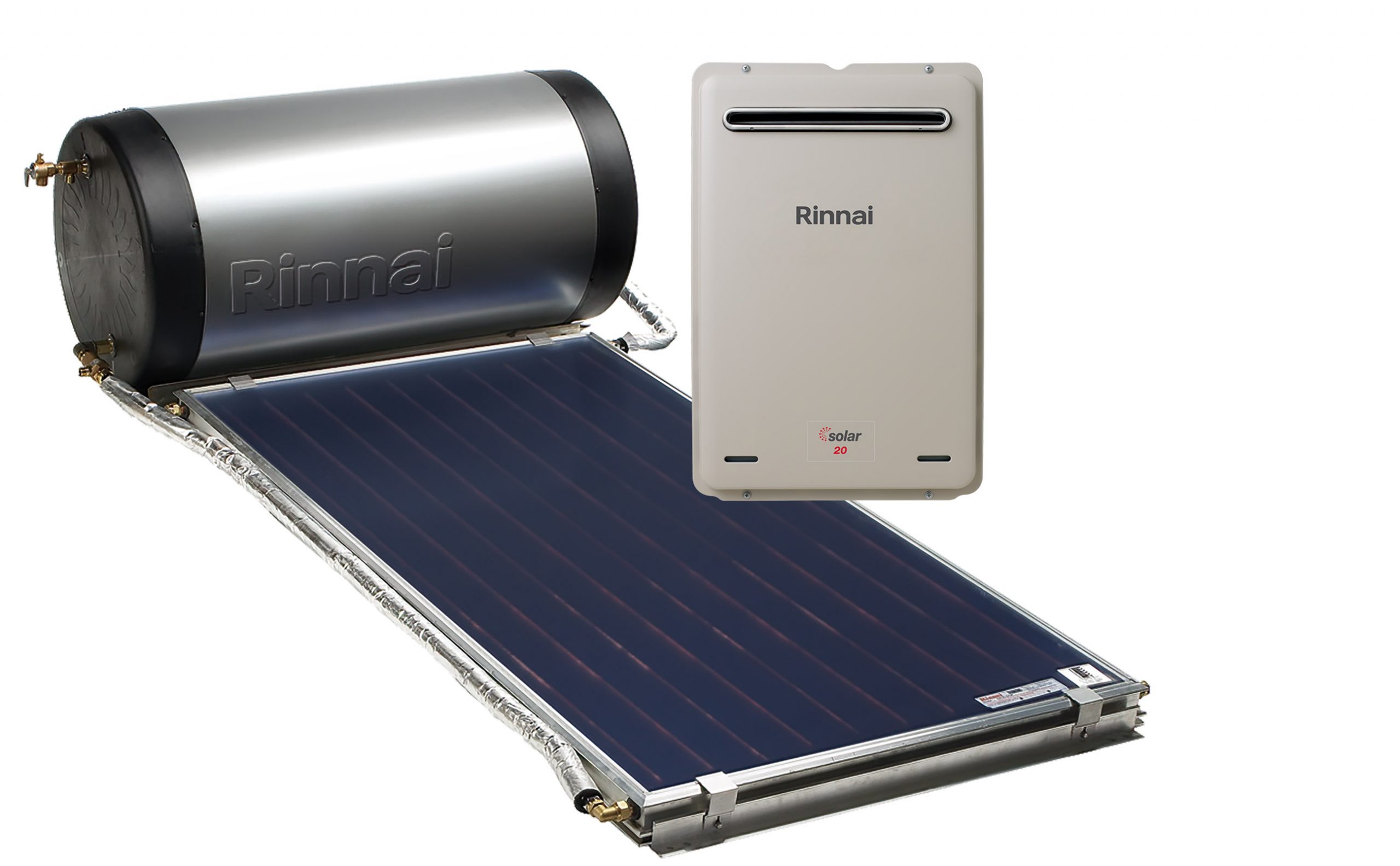

Rinnai Close Coupled Electric Single Flat Plate Collector - S20 Gas CF BoosterPreview
-
Rinnai Close Coupled Electric Double Flat Plate Collector - S20 Gas CF BoosterPreview
-

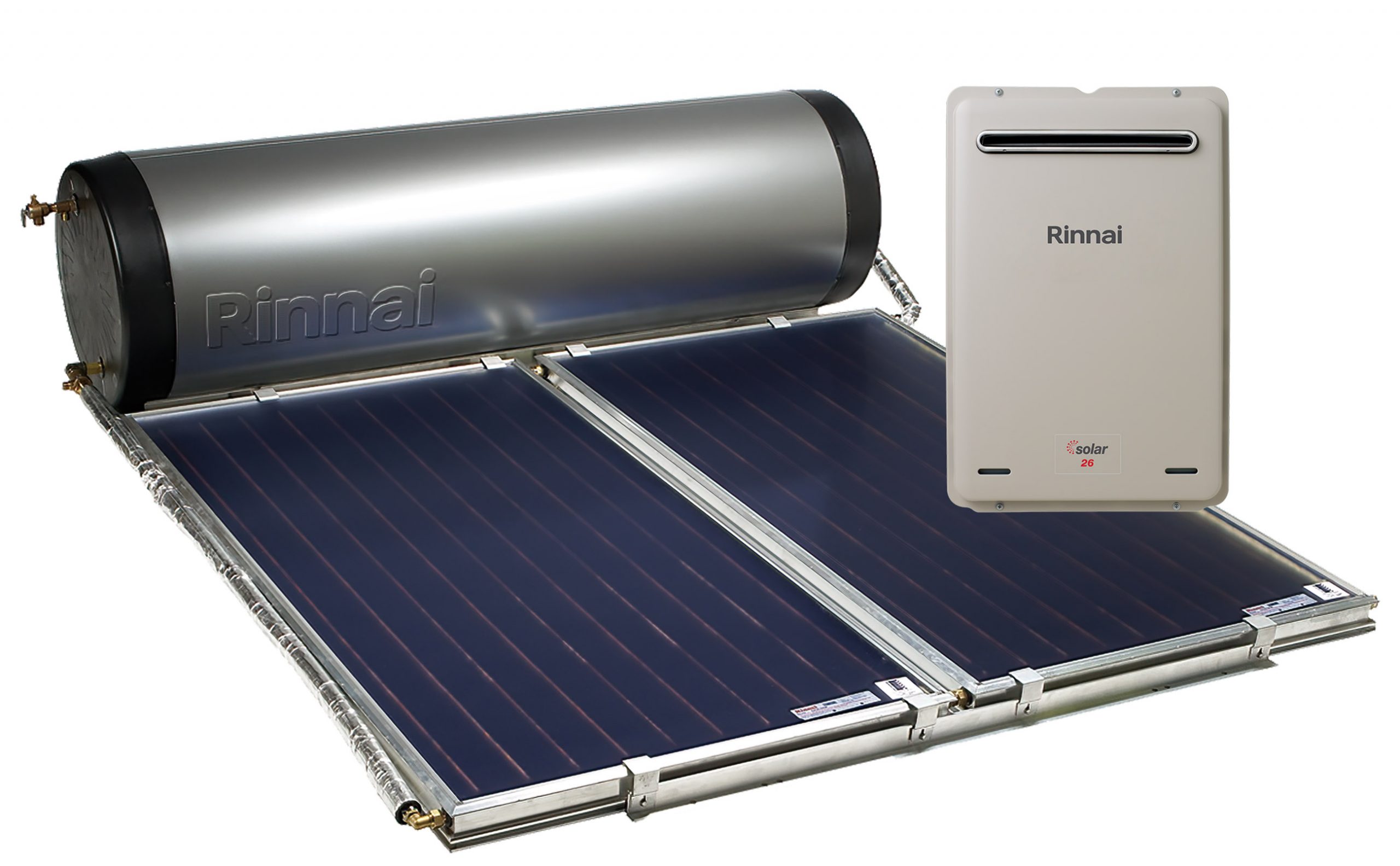

Rinnai Close Coupled Electric Double Flat Plate Collector - S26 Gas CF BoosterPreview
-

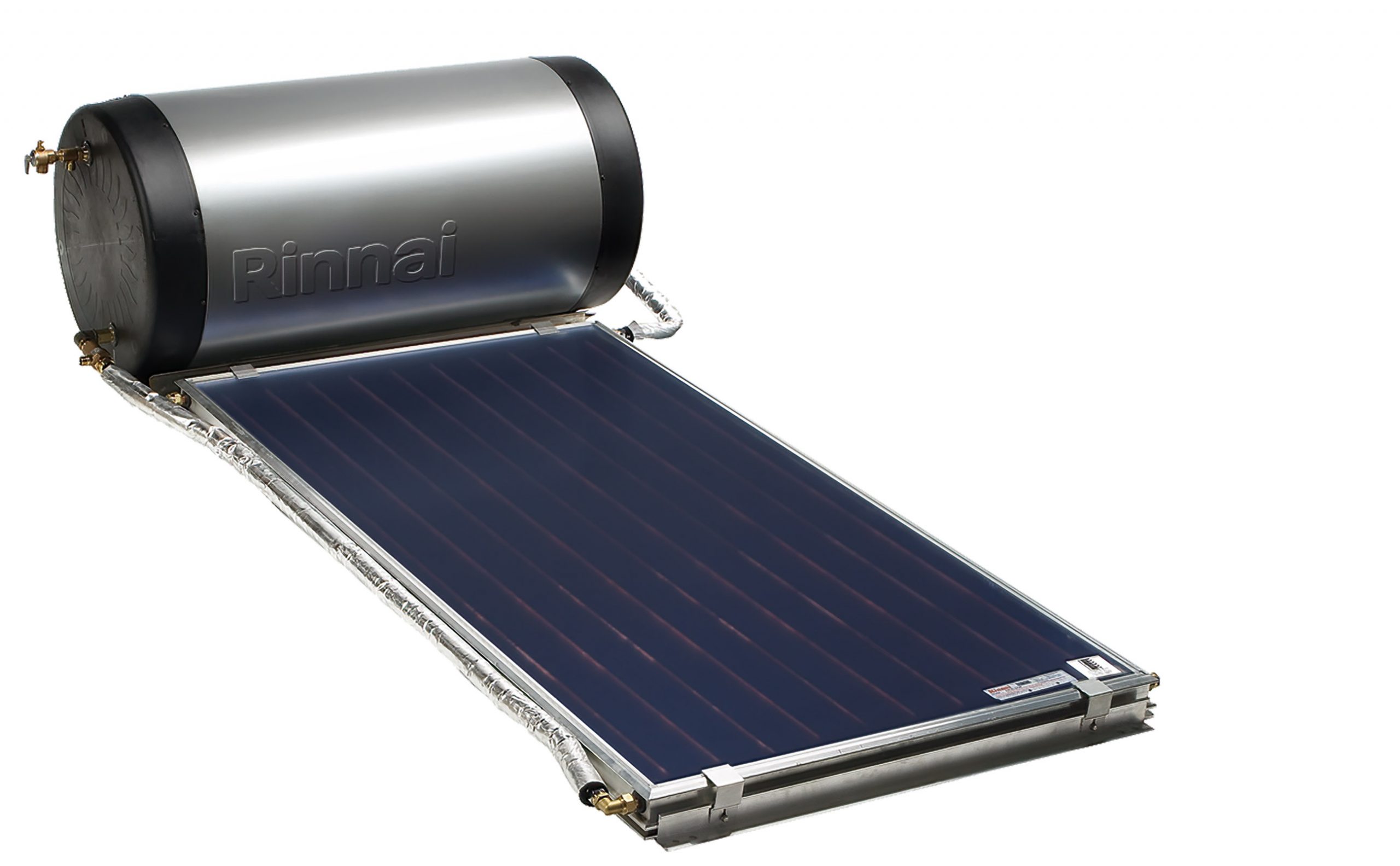

Rinnai Close Coupled Electric Single Flat Plate CollectorPreview
