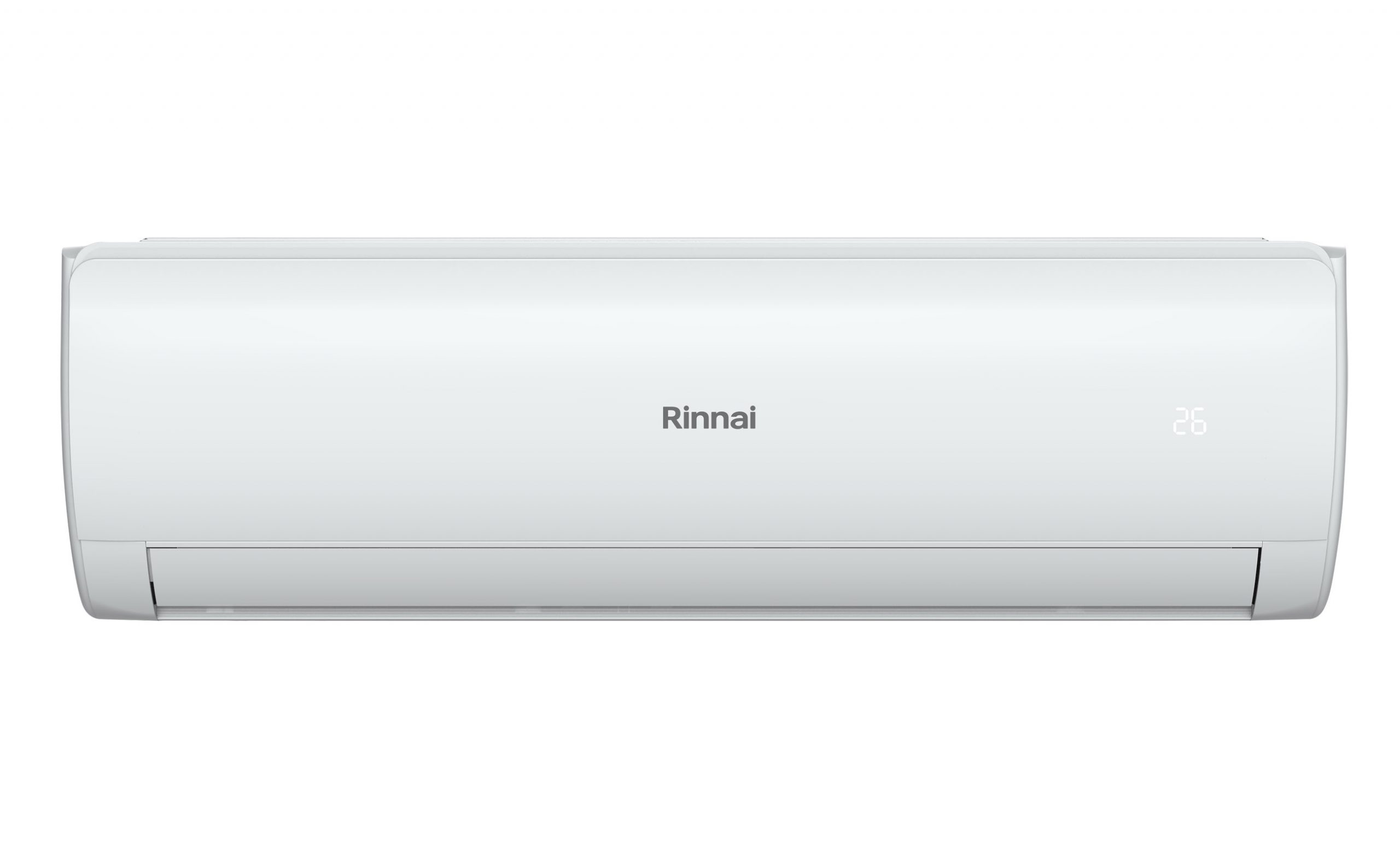

7.0kW Reverse Cycle Split System
7.0kW Reverse Cycle Split System
Escape the hot summer and wintry cold nights with the Rinnai Q Series 7.0kW Reverse Cycle Split System.
Enjoy the comforts of your large, open plan spaces, as this intelligent wall air conditioner quietly operates in the background keeping noise to a minimum without affecting performance. The cleverly designed air tunnel delivers an impressive air distribution with distances reaching up to 15 metres for efficient home heating and cooling.
The more eco-friendly R32 refrigerant not only has a lower environmental impact, but its efficiency conserves energy, resulting in greater long-term household savings.
Equipped with convenient Wi-Fi control, self-cleaning and turbo functions, the Rinnai Q Series 7.0kW Reverse Cycle Split System lets you quickly warm up and down at the simple touch of a button.
This product does not have a replacement product.
Ideal for large, open plan living areas
Wi-Fi Control
Energy efficient inverter technology
Sleek, modern design
- Sleek, modern design
- Energy efficient inverter technology
- Easy to use remote control
- Wi-Fi Enabled
- Delay timer to turn the appliance on or off within a specific time period
- Intuitive end of season cleaning function
- Adjustable air flow direction
- Outdoor operation range for temperatures of up to 52° Celsius
- Low operating noise levels
- Boost/turbo mode to reach the set temperature within a shorter period of time
- R32 Refrigerant
- 5 year limited warranty
The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact Rinnai to confirm product information
| Model | HSNRQ70B | |
| Cooling Capacity | kW | 7.0(0.95 ~ 7.8) |
| Heating Capacity | kW | 7.0(0.85 ~ 8.0) |
| AEER/ACOP | W/W | 3.801/3.868 |
| Energy Star For Cooling | 3.0 | |
| Energy Star For Heating | 3.0 | |
| Indoor Noise Level (Turbo / Min) | dBA | 50 – 27 |
| Outdoor Noise Level | dBA | 59 |
| Electrical Data | ||
| Power Supply | (V)/(HZ) | 220-240~/50 |
| Running Current | Cooling (A) | 8.1 (1.5 ~ 11.5) |
| Heating (A) | 8.0 (1.5 ~ 11.5) | |
| Power Input | Cooling (W) | 1865 |
| Heating (W) | 1850 | |
| Refrigerating System | ||
| Refrigerant Type | R32 | |
| Compressor | Type | Variable Output |
| Connections | ||
| Connecting Pipe | Liquid (Inches) | 1/4 |
| Gas (Inches) | 5/8 | |
| Dimensions | ||
| Net Dimensions (W*H*D) | Indoor (mm) | 1100*330*235 |
| Outdoor (mm) | 930*700*388 | |
| Net Weight | Indoor (kg) | 14 |
| Outdoor (kg) | 47 |
