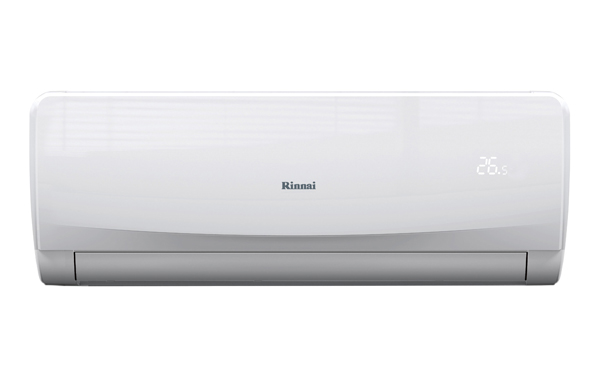

2.5kW Reverse Cycle
2.5kW Reverse Cycle
The 2.5kW Rinnai G Series split system offers the latest in cooling technology. With Wi-Fi control, you are in complete control of your room temperature via an app on your smart device - giving you flexibility to suit your busy lifestyle.
All Rinnai G Series split systems feature high performing inverter technology with quality engineering and components, ensuring you can relax in comfort this summer.
This product does not have a replacement product.
Ideal size for a bedroom
Wi-Fi Control
DRED Function
Quiet Operation
- Bright, sleek design consistent across the range
- Wi-Fi Control
- Demand Response Enabled Device
- Quiet operation with the ability to operate a 'quiet' mode
- 3D Airflow for wall-to-wall comfort
- Turbo mode boost to help reach set temperatures quickly
- Innovative sleep mode giving you greater control and comfort
- 24 Hour Delay Timer (or full programmable timer function available through the Wi-Fi app)

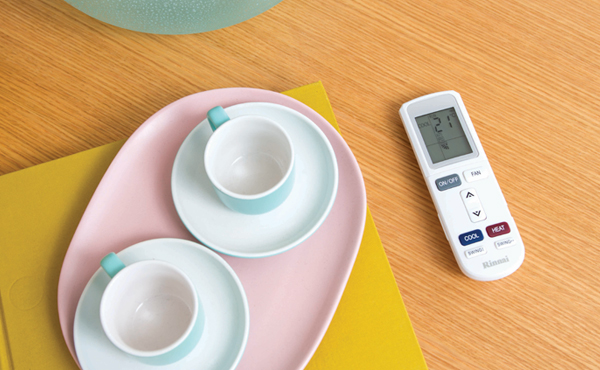

- LCD Wireless Remote Control
- Translucent set temperature display
The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact Rinnai to confirm product information.
| RINV25RC | |||
| 2.5kW Rev Cycle Split AC | |||
| Cooling Capacity | kW | 2.5(1.5-3.4) | |
| Heating Capacity | W | 2.8(1.4-3.7) | |
| EER /COP | W/W | 3.9/4.1 | |
| Energy Star For Cooling | 3 | ||
| Energy Star For Heating | 3.5 | ||
| Moisture Removal | Litres/h | 0.8 | |
| Sound Pressure Level | Indoor (Turbo/Quiet) | dB（A） | 40/30 |
| Outdoor (High/Low) | dB（A） | 51/46 | |
| Sound Power Level | Outdoor (High/Low) | dB (A) | 59/54 |
| Electrical Data | |||
| Power Supply | (V)/(HZ) | 220-240~/50 | |
| Running Current | Cooling | A | 3.8(2.0-6.8) |
| Heating | A | 3.4(1.7-4.8) | |
| Power Input | Cooling | W | 650(330-1550) |
| Heating | W | 650(310-1080) | |
| Refrigerating System | |||
| Refrigerant | R410A | Volume (g) | 830 |
| Compressor | Type | Variable Output | |
| Connections | |||
| Connecting Pipe | Liquid | inch | 1/4 |
| Gas | inch | 3/8 | |
| Maximum Pipe Length | m | 15 | |
| Maximum Height Difference | m | 8 | |
| Precharge Length | m | 5 | |
| Others | |||
| Net Dimensions (W*D*H) | Indoor | mm | 800×198×300 |
| Outdoor | mm | 720×260×540 | |
| Net Weight | Indoor | kg | 9.5 |
| Outdoor | kg | 27.5 | |
| Operation Range Limitations | Cooling & Heating | °C | -12 to 47 |
